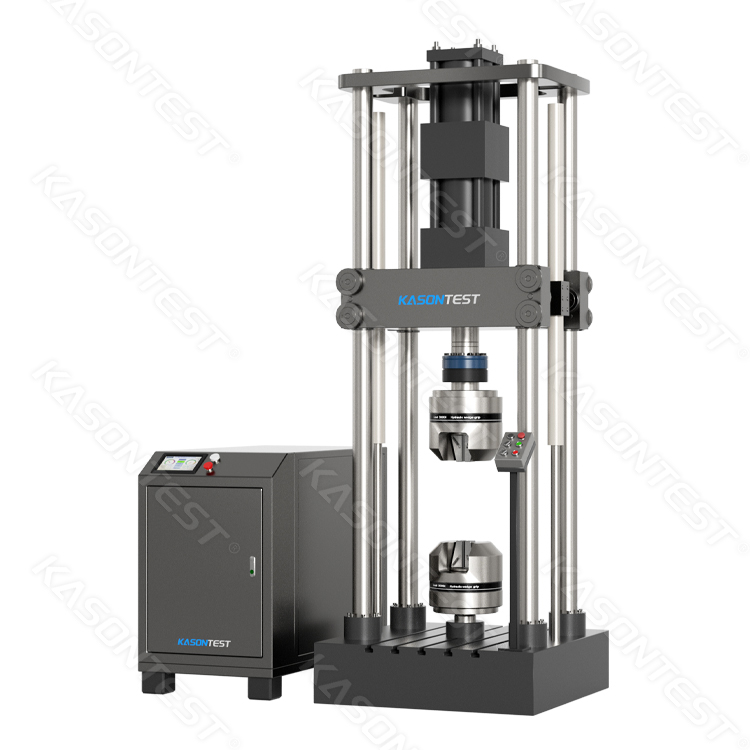

50kn/250kn/500kn Computer Control Electro-Hydraulic tensile compression Universal Fatigue Testing Machine
1.Application：
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
2.Specifications:
Model
Kason-370.05
Kason-370.10
Kason-370.20
Kason-370.25
Load Capacity(kN)
Static
50
100
200
250
Dynamic
±40
±80
±160
±160
Measurement
Accuracy
Load
±1.0% of Reading
Displacement
±1.0% FS of Each File
Deformation
±1.0% of Reading
Range Of Frequency
0.1～15Hz / 20Hz / 50Hz
Stroke of Piston(mm)
±50
±50
±75
±75
Distance Between Columns(mm)
500
500
700
700
Distance Between Grips(mm)
50~600
Specification of constant voltage servo pump station
flow≥37L/min, 21Mpa, 380V three phase
