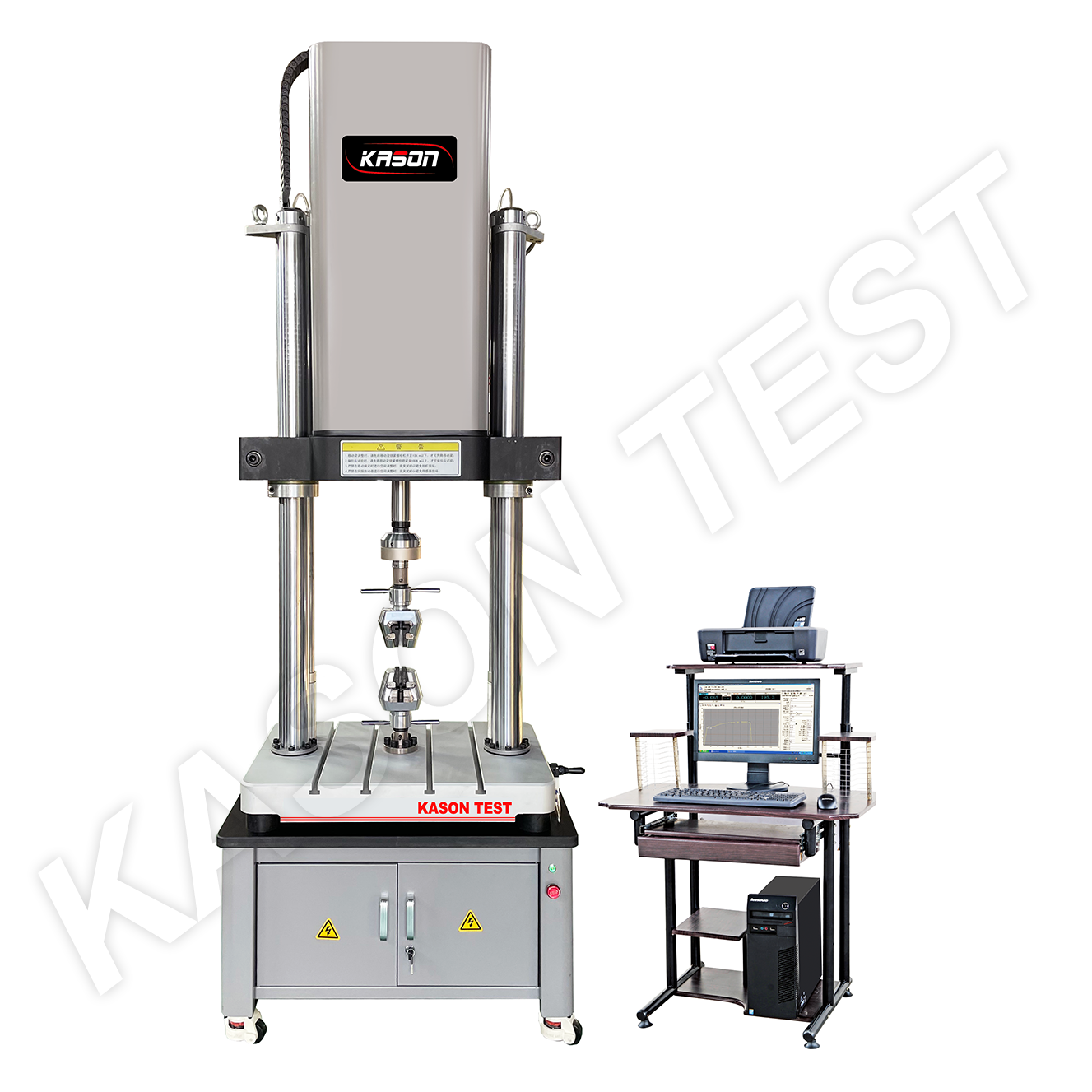

computerized electronic wire cable bending and compression Fatigue Testing Machine
1.Application：
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.2.Specifications:
| Model | Kason-370.05 | Kason-370.10 | Kason-370.20 | Kason-370.25 | |
|
Load Capacity(kN) |
Static |
50 | 100 | 200 | 250 |
| Dynamic | ±40 | ±80 | ±160 | ±160 | |
|
Measurement Accuracy |
Load |
±1.0% of Reading | |||
| Displacement | ±1.0% FS of Each File | ||||
| Deformation | ±1.0% of Reading | ||||
|
Range Of Frequency |
0.1～15Hz / 20Hz / 50Hz | ||||
| Stroke of Piston(mm) | ±50 | ±50 | ±75 | ±75 | |
|
Distance Between Columns(mm) |
500 | 500 | 700 | 700 | |
|
Distance Between Grips(mm) |
50~600 | ||||
| Specification of constant voltage servo pump station | flow≥37L/min, 21Mpa, 380V three phase | ||||
