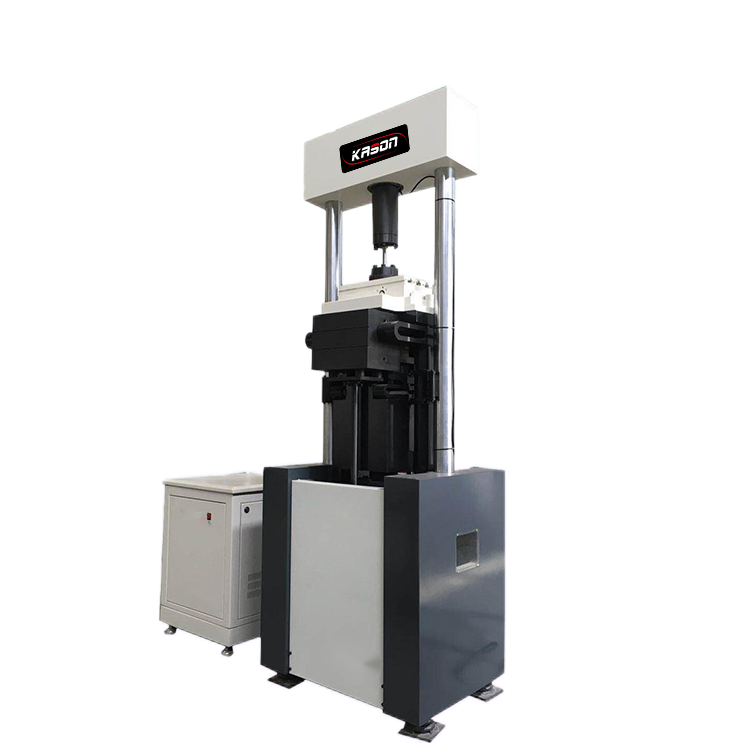

200kn Electromagnetic Resonance High Frequency Fatigue Testing Machine High frequency fatigue tester 20 tons
1. Application:
PLG Series Electromagnetic Resonance Fatigue Testing Machine is used for fatigue tests on metallic materials and components under tension, compression or reversal load. Equipped with relevant grips, three-point bending test, four-point bending test, tension and compression of sheet sample test, tension and compression of circle test, gear wheel, bolt, connecting rod, roller chain, crackle expanding tests can be done on this machine. The series of testing machines undergo optimization design, the structure is rational. The automatic controlled system adopts the advanced pulse wide control system and new-type power amplifier to improve the reliability of the electric system .
It has high efficiency, easy to shake, no-stop shake, low energy consummation, high controlling accuracy, small fluctuation. The machine is complied with DIN50100.
2. Specifications:
|
Model |
PLG-200C |
|
Max. test load |
200KN |
|
Max single-track pulsation test load |
200kN
|
|
Max. Dynamic test load |
±100KN |
|
Load measuring range
|
1%-100%FS |
|
Static indication accuracy |
±1% |
|
Dynamic loading accuracy |
±1% |
|
Frequency |
50~250hz |
|
Max. distance between grips |
700mm |
|
Max. distance between columns |
600mm |
|
Load frame dimension
|
100*800*2550mm |
|
Control dimension
|
550*550*750mm |
|
Weight |
5500KG |
|
Work Environmental temperature
|
5℃-40℃ |
|
Power Supply
|
AC220V±10%, 50HZ |
|
Optional: high temperature furnace and high temperature extensometer, fatigue crack rate test; |
|
