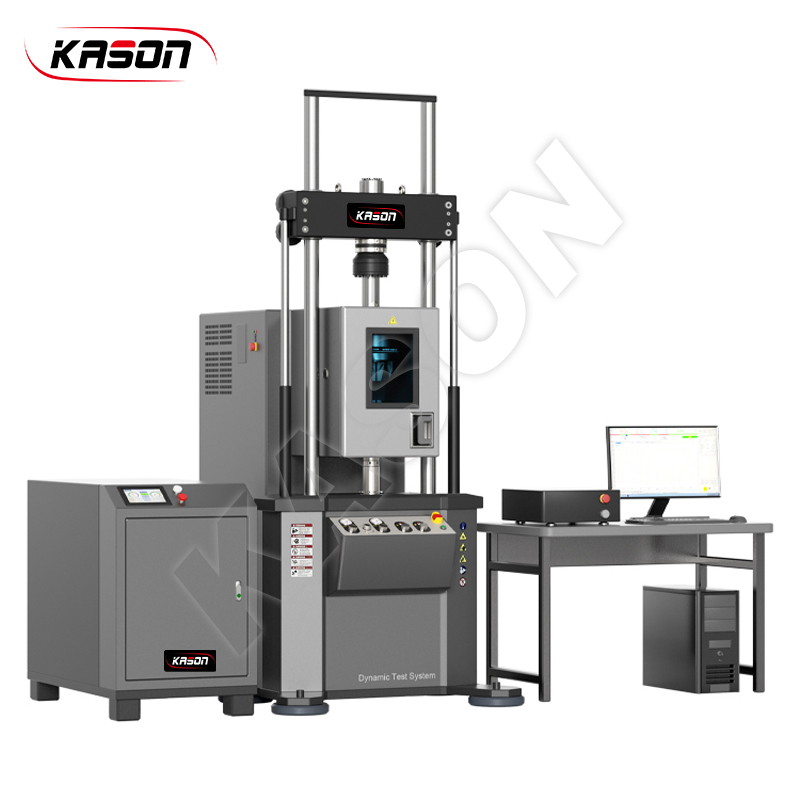

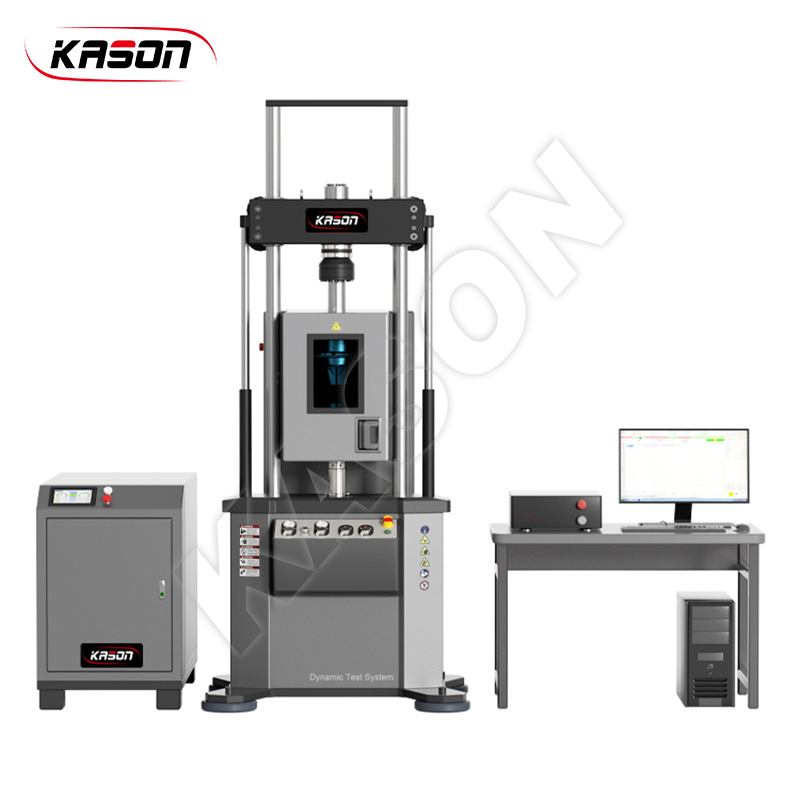

Hydraulic Servo Dynamic Fatigue Testing Machine with chamber High And Low Temperature Fatigue Testing Machine
Application:
It is mainly used to detect the static and dynamic mechanical properties of metal and non-metal materials. It can realize mechanical tests such as tension, compression, tension-tension, compression-compression and tension-compression, as well as high-cycle fatigue, low-cycle fatigue, crack growth, fracture toughness and other tests, and realize various waveform outputs such as sine wave, triangle wave, square wave, etc.
Specification:
|
MODEL |
KASON- HDT254BC |
KASON- HDT504BC |
KASON- HDT105BC |
KASON- HDT255BC |
KASON- HDT505BC |
|
Maximum dynamic force (kN) |
±25 |
±50 |
±100 |
±250 |
±500 |
|
Maximum static force (kN) |
25 |
50 |
100 |
250 |
500 |
|
Load range |
2%-100%FS |
||||
|
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
||||
|
Actuator dynamic stroke(mm) |
150 |
||||
|
Displacement measuring range (mm) |
0～150(±75) |
||||
|
Displacement measurement resolution(mm) |
0.001 |
||||
|
Deformation indication relative error |
±0.5% |
||||
|
Sine wave test Frequency (Hz) |
Standard: 0.01～30; Optional: 0.01～50; 0.01～100(Static pressure support cylinder) |
||||
|
Vertical test space(mm） |
800 |
800 |
800 |
1000 |
1000 |
|
Working table height (mm) |
825 |
825 |
825 |
825 |
825 |
|
Effective distance between columns(mm) |
545 |
545 |
545 |
635 |
635 |
|
Column diameter(mm) |
80 |
76.2 |
|||
|
Main frame stiffness |
3×108 |
||||
|
Machine frame sizes(mm) |
1010X720X2900 |
1148X795X3252 |
|||
|
Machine frame weight(KG) |
1200 |
1200 |
|||
|
Coaxiality of hydraulic fixture |
5% |
||||
|
Power supply |
AC 380V± 10%, 50Hz |
||||
|
Temperature range |
-60℃～+300℃; -70℃～+300℃;-100℃～+300℃ |
||||
