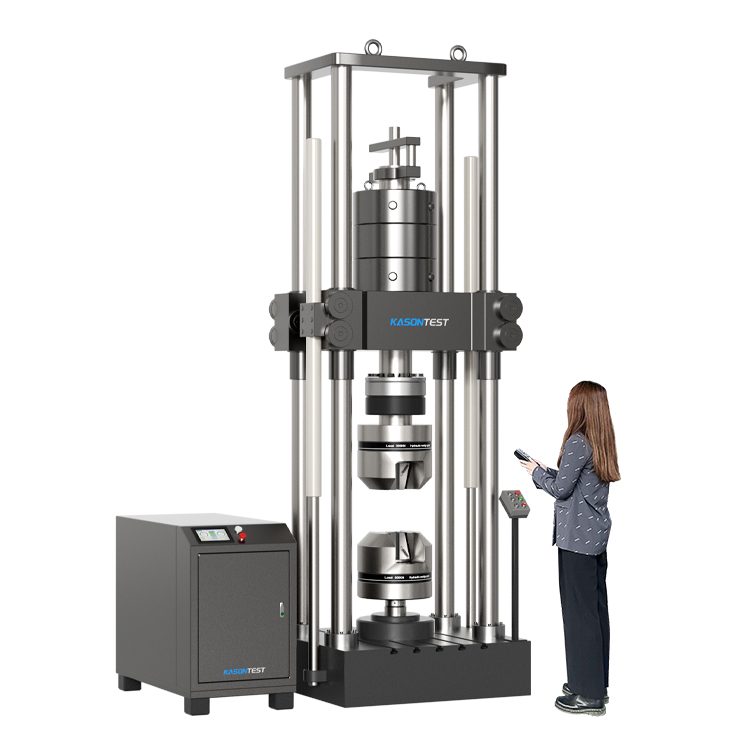

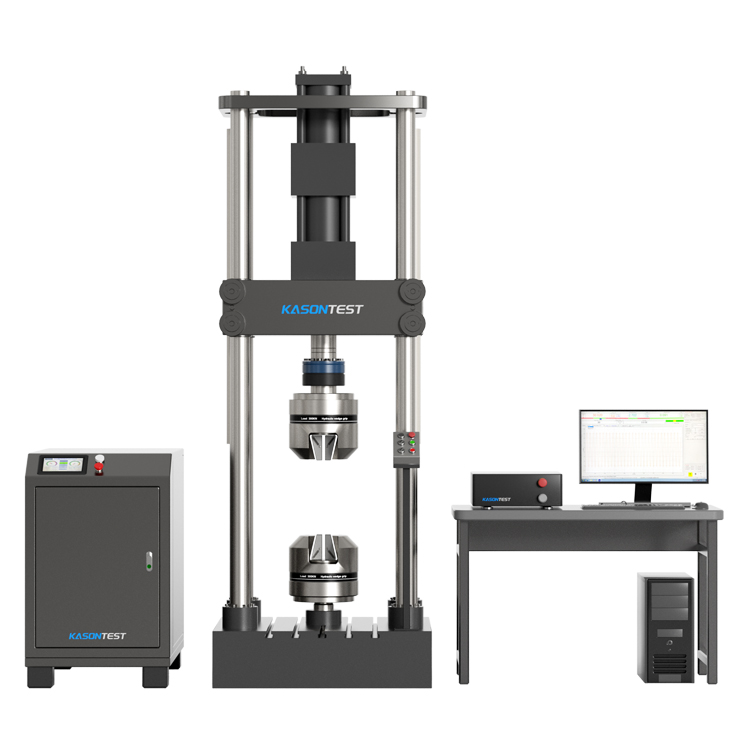

HDT-A servo hydraulic Dynamic Static Fatigue Testing Machine (4 column)500kn/1000kn/2000kn
Application:
It is mainly used to test the dynamic and static mechanical properties of various materials, parts, elastomers, shock absorbers and components. It can perform tensile, compression, bending, low and high cycle fatigue, crack propagation, and fracture mechanics tests under sine wave, triangle wave, square wave, trapezoidal wave, and combined waveforms. It can also be equipped with environmental testing devices to complete environmental simulation tests at different temperatures.
Features
The actuator is mounted and the T-type platform is mounted to form a closed frame structure.
The frame has large stiffness, no reverse clearance and good stability.
The actuator is designed by two-way acting cylinder.
Hydraulic fixtures can be installed on the T-shaped platform, as well as various parts and structural parts.
Specification:
|
Model |
KASON- HDT504A |
KASON- HDT105A |
KASON-HDT255A
|
KASON- HDT505A
|
KASON-HDT106A
|
KASON-HDT20A
|
|
Maximum dynamic force (kN) |
±50
|
±100
|
±250
|
±500
|
±1000
|
±2000 |
|
Maximum static force (kN) |
50
|
100
|
250
|
500
|
1000
|
2000 |
|
Load range |
2%-100%FS |
|||||
|
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
|||||
|
Actuator dynamic stroke(mm) |
150 |
|||||
|
Displacement measuring range (mm) |
0～150(±75) |
|||||
|
Displacement measurement resolution(mm) |
0.001 |
|||||
|
Deformation indication relative error |
±0.5% |
|||||
|
Sine wave test Frequency (Hz) |
Standard: 0.01～30; Optional: 0.01～50; 0.01～100(Static pressure support cylinder) |
|||||
|
Test space (mm) |
1500
|
|||||
|
Test width（mm） |
720 |
|||||
|
Main frame stiffness |
3×108 |
|||||
|
Coaxiality of hydraulic fixture |
5% |
|||||
|
Power supply |
AC 380V± 10%, 50Hz |
|||||
