1.Application

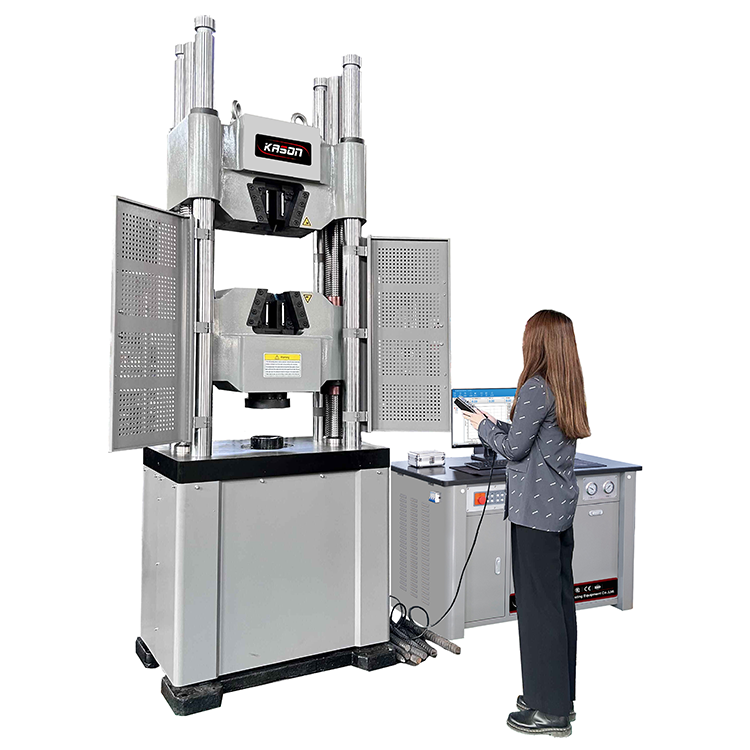

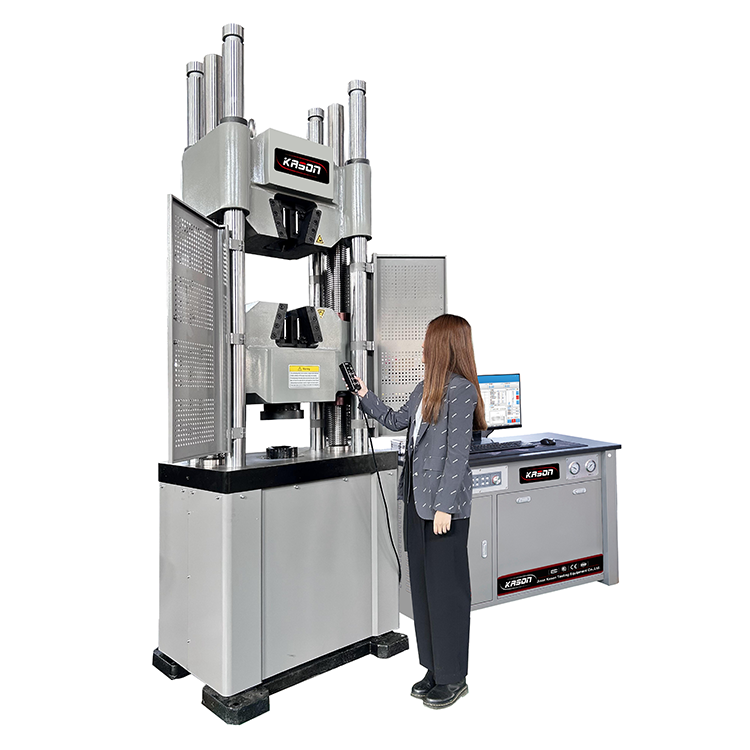

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate.
It is mainly used to execute the tension,compression,bending,flexuraletc. test for metal materials.
Attached with simple accessories and devices, it can be used to test wood, concrete, cement,rubber, and so on.
It is very suitable for making test to different metal or nonmetalmaterials under high toughness and hardness against extreme big loading force.
2.Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3.Specification
Model
|
HUT305S
HUT305E
HUT305W
|
HUT605S
HUT605E
HUT605W
|
HUT105S
HUT105E
HUT105W
|
HUT126S
HUT126E
HUT126W
|
HUT206S
HUT206E
HUT206W
|
Max. Load(kN)
|
300
|
600
|
1000
|
1200
|
2000
|
Load Accuracy
|
Class 1/ Class 0.5
|
Load Range
|
2%~100%FS
|
Load Resolution
|
1/350000
|
Deformation Measurement Range
|
2%~100%FS
|
Deformation Accuracy
|
≤± 1%
|
Displacement Resolution
|
0.001mm
|
Displacement Error
|
≤±0.5%
|
Testing speeds (mm/min)
|
0.1~123
|
0.1~123
|
0.1~70
|
0.1~70
|
0.1~70
|
Max. Piston Stroke(mm)
|
200
|
200
|
200/250
|
250
|
250
|
Tension Test Space(mm)
|
780
|
900
|
950/980
|
930
|
1250
|
Compression Space(mm)
|
550
|
650
|
700
|
640
|
850
|
Column
Effective Spacing(mm)
|
485
|
500
|
560
|
610
|
800
|
