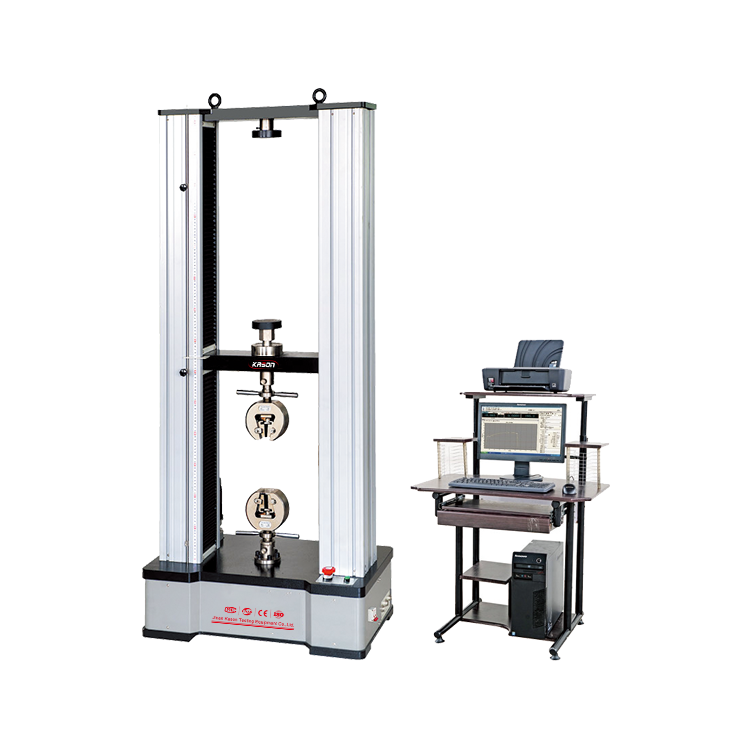

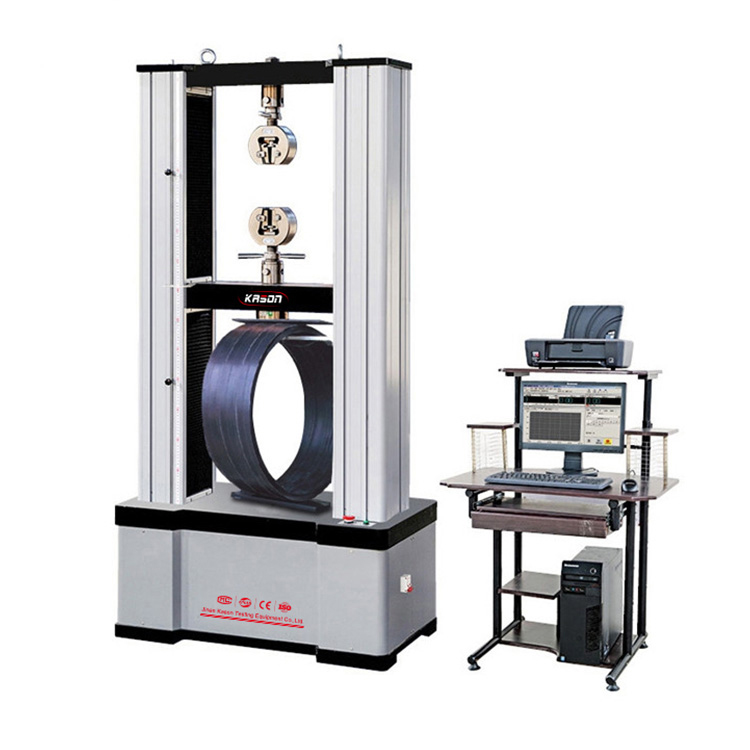

Application
This series materialstesting machine product group was primarily developed for standardized tests on materials and components.Typical test applications for wide range of tension, compression, bending, shearing and low cycle test, include metal, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts, etc.
Standards
ASTMA370,ASTME4,ASTME8,ASTME9,
ISO6892,ISO7438,ISO7500-1,EN10002-4,
GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Specification
Model |
ETM 104 |
ETM 204 |
Load cell |
||
Calibration standard |
ISO 7500 |
|
Load Capacity (kN) |
10 |
20 |
Accuracy grade |
±0.5% of reading |
|
Testing load accuracy |
±0.5% of reading |
|
Deformation accuracy |
±0.5% of reading |
|
Displacement Accuracy |
±0.5% of reading |
|
Testing Force Range |
0.2%-100%FS |
|
Force Resolution |
1/500000FS |
|
Force accuracy |
±0.5% of reading |
|
Controller |
|
|
Sampling frequency |
Up to 1000 Hz |
|
Closed loop control frequency |
Up to 1000Hz |
|
Resolution |
20 bit |
|
Software |
KASON TEST(Support English,Russian ,Turkish Language, etc. |
|
Main frame |
|
|
Speed Range (mm/min) |
0.01-1000 |
|
Control Accuracy |
±0.5% |
|
Crosshead Travel(mm) |
1140mm |
|
Tensile Testing Space(mm) |
800 |
|
Compression Testing Space(mm) |
800 |
|
Test width (mm) |
400 |
|
Compression Platen (mm) |
Ф100mm |
|
Power Supply |
AC220V±10%, 50Hz/60Hz |
|
Overall Dimensions (L*W*H: mm) |
740 x 420 x 1720 |
|
Net Weight(kg) |
160
|
