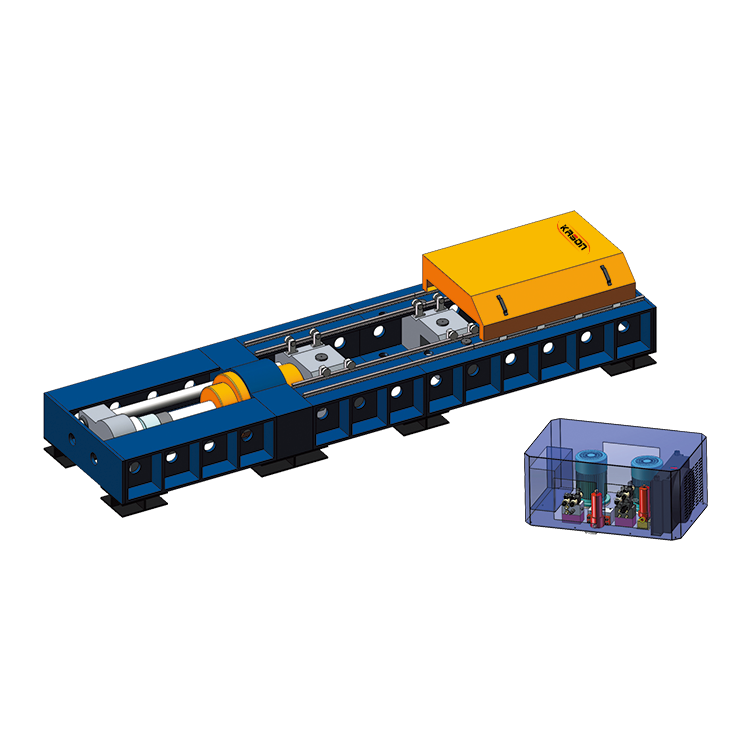

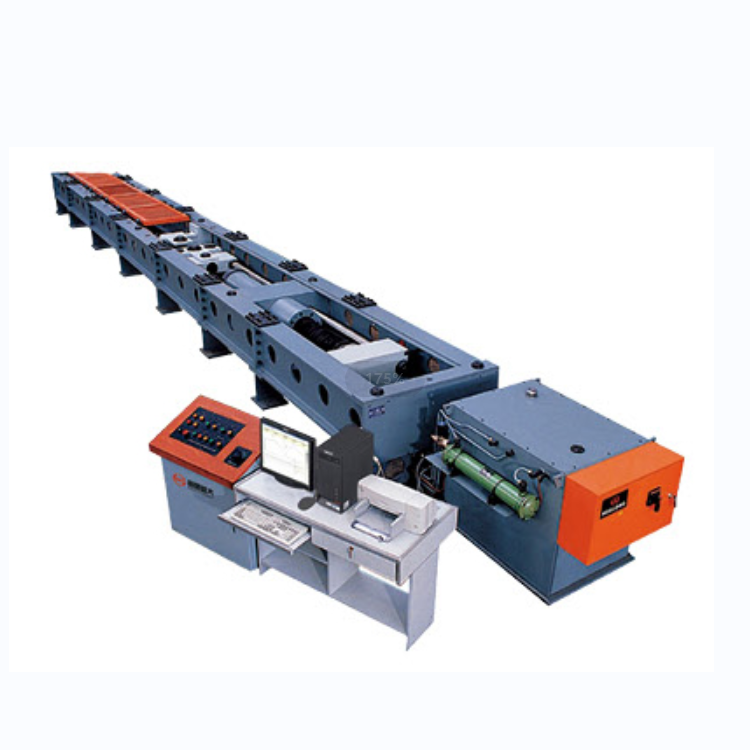

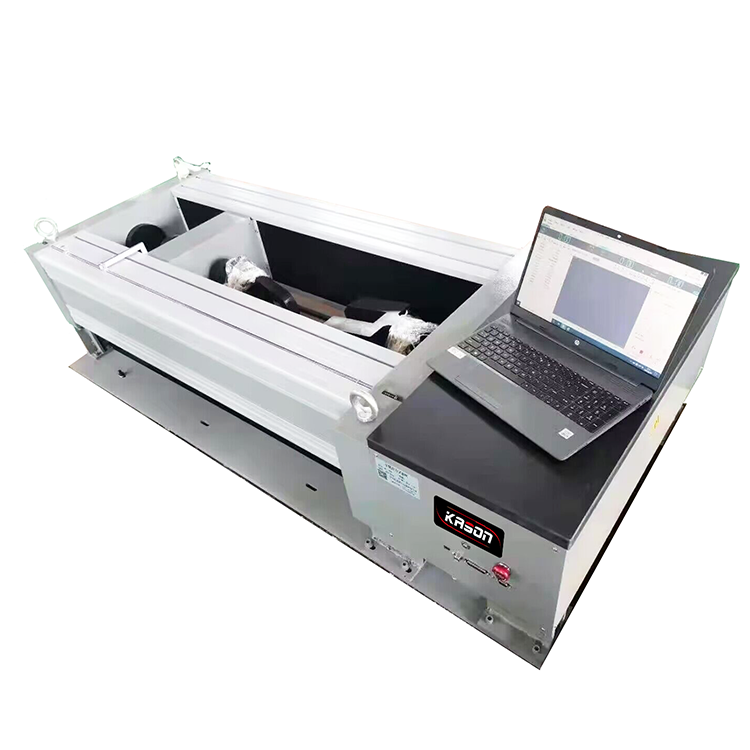

100ton/200ton/150ton/250ton/300ton/1000ton Chain /Nylon /Steel wire rope horizontal tensile testing machine
Application
The machine adopting computer control, hydraulic servo drive, hydraulic single-pole bidirectional cylinder loading, precision spoke load sensor signal measuring force value, high accuracy sensor measurement displacement.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4,GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Specifications
|
Model |
WAL-100/200/300/500/1000/2000/3000/5000 |
|
Max. Load(kN) |
100/200/300/500/1000/2000/3000/5000 |
|
Load accuracy |
Class 1 |
|
Load range |
2%～100%F·S |
|
Load resolution(kN) |
1/300000 |
|
Resolution of displacement |
0.01mm |
|
Max tensile space |
customized |
|
Cylinder piston stroke |
customized |
|
Displacement measuring range |
0～1000mm |
|
Displacement accuracy |
±1% |
|
Range of stress loading |
1kN/s～100kN/s |
|
testing speed (mm/min) |
1~200 |
|
Piston speed |
0.1-250mm/min |
|
Power supply |
380 V / 3 phases 60 Hz. |
