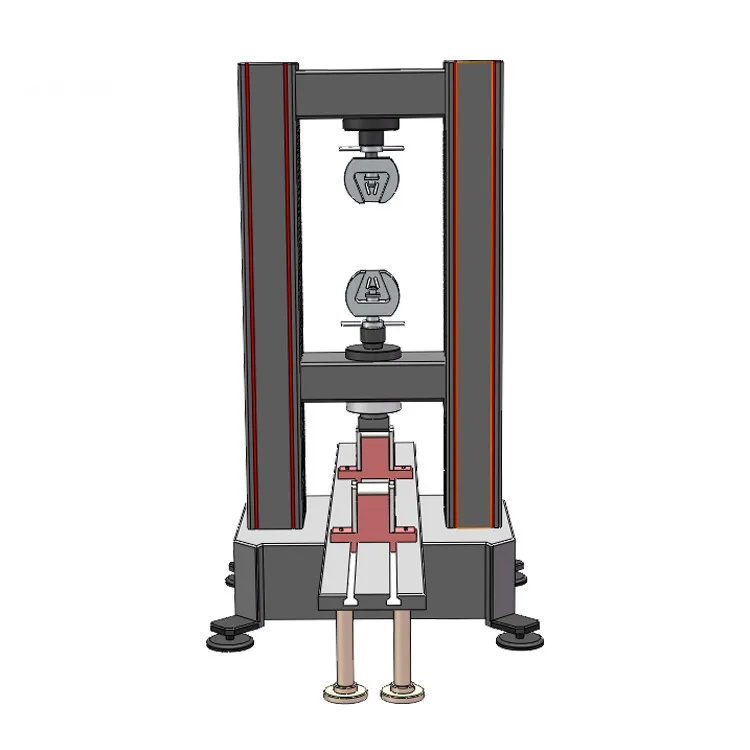

Microcomputer controlled electronic ladder static load testing machine

Application:

This series electromechanical testing machines is designed according to ASTM, ISO, DIN, EN etc. standards. It is computer-controlled precision testing machine, suitable for extensive metallic & nonmetallic materials for tension, compression, bending, shearing and low cycle test etc. It features as high precision, high stability as well as high reliability. Equipped with PC system & printer, graph, test result display, data processing and printing can be done easily. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing. It is widely used in many fields of such as industry factories, research & development, test institutes and training centers etc.

Specifications

Model	ETM-104C
Load cell
Calibration standard	ISO 7500
Max load capacity	10KN
Accuracy class	Class 1(Class 0.5 optional)
Load measurement accuracy	1%-100%FS S
Load resolution	±1/500000
Deformation rate accuracy range	When rate < 0.05% FS/s, the precision± 1%
Displacement resolution	0.025μm
Displacement control accuracy	±0.02mm or 0.5% of displacement
Controller
Sampling frequency	Up to 1000Hz
Closed loop control frequency	Up to 1000Hz
Resolution	20bit
Main frame
Frame type	Floor type double column/dual test space
Crosshead speed range	0.001-500mm/min
Crosshead speed accuracy	±0.5% of set speed
Test width	400mm (can be customized)
Total crosshead travell (without grip)	1100mm (can be customized)
Tensile Testing Space	700mm (can be customized)
Compression Testing Space	700mm (can be customized)
Compression Platen	Ф100mm
Power Supply	220VAC, 1 phase, 50Hz
Overall Dimensions	770*465*1736mm
Net Weight	300kg
Operating Temperature	0 to +38° C
