Introduction

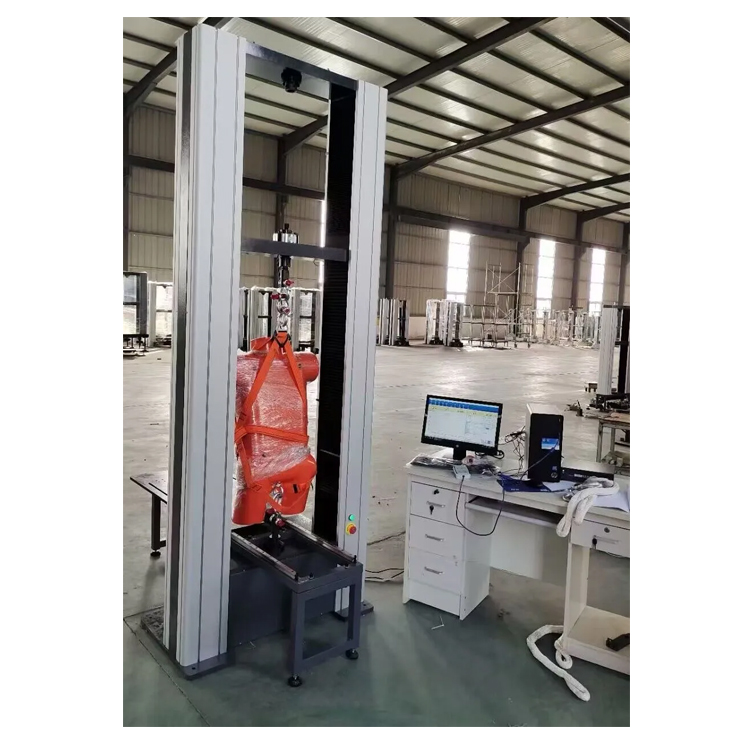

ETM series (Dual Space) computer control electric safety harness testing machine is designed and manufactured according to ASTM, ISO, DIN etc standards. It is computer-controlled precision testing machine, suitable for wide range of material for tension, compression, bending, shearing test etc. It has high stability as well as high precision, equipped with PC system & printer for graph, test result display, printing & data processing. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing. It is widely used in many fields such as industry factories, mineral enterprise and high schools.
Main Parameters
Model | ETM 504D |
Load cell | |
Calibration standard | ISO 7500 |
Load Capacity (kN) | 50 |
Accuracy class | 0.5 |
Testing Force Range | 0.2%-100%FS (full scale) |
Indicating error of test force | Within ±0.5% of indicating value |
Resolution of test force | ±1/500000 of maximum test force, grade unchangedand resolution unchanged in whole process |
Measuring range of deformation | Measuring range of deformation |
Indicating error of deformation | Within ±0.5% of indicating value |
Resolution of deformation | 1/300000 of maximum deformation |
Indicating error of displacement | Within ±0.5% of indicating value |
Resolution of displacement | 0.025μm |
Controller | |
Sampling frequency | Up to 1000 Hz |
Closed loop control frequency | Up to 1000Hz |
Resolution | 20 bit |
Software | KASON TEST(Support English,Russian ,Turkish Language, etc.) |
Main frame | |
Speed Range (mm/min) | 0.01-500 |
Test speed accuracy | ±0.5% |
Tensile Testing Space(mm) | 2500 |
Test width (mm) | 700 |
Compression Platen (mm) | Ф90mm |
Power Supply | Single phase AC220V±10%, 50Hz/60Hz |
Operating Temperature | 0 to +38° C |
