Specifications
Capacity | N | 10000 |
Calibration standard | - | 0.5 according to ISO 7500-1 - Meets ASTM E-4 |
Position resolution | μm | 0.025 |
Force range | FS | 0.2%-100% |
Force resolution | FS | Capacity/500, 000 (fully auto scaling of single measurement range) |
Force accuracy | % | 0.5 of reading |
Controller | ||
Sampling frequency | Hz | Up to 1000 |
Closed loop control frequency | Hz | Up to 1000 |
Software | Support English, Russian, etc | |
Load resolution | kN | Capacity/500, 000(fully auto scaling of single measurement range) |
Speed | ||
Testing Speed | mm/min | 0.001-500 |
Speed accuracy | % | ±0.5 of set speed |
Main frame | ||

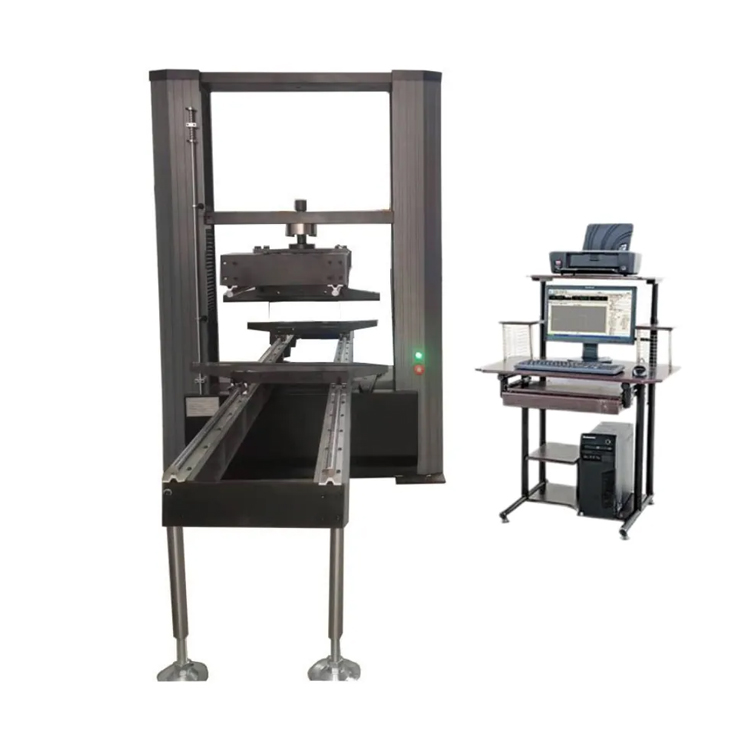

Frame type | - | Floor type double column/dual test space |
Test width | mm | 1200 (According to the customer request ) |
Accommodate tile | mm | 1200*1200mm tiles size |
Crosshead Travel | mm | 1100 |
Max. Tensile Testing Space | mm | 700 |
Max. Compression Testing Space | mm | 1100 |
Power supply | V/Hz | 230V-50/60 |
