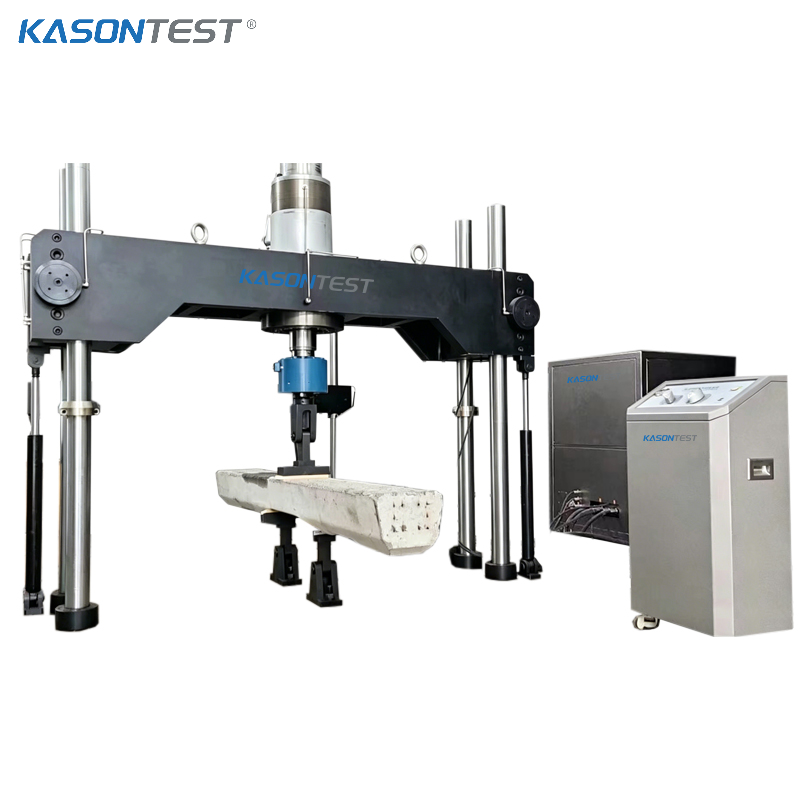

KASON HFT2000A-3 Rail and sleeper fatigue testing machine
Product introduction
The KASON HFT2000A-3 sleeper fatigue loading Testing Machine is mainly used for static mechanical properties, dynamic mechanical properties and various conventional mechanical performance Tests of fastener assemblies, railway sleepers and other products. By replacing fixtures, it can also be applied to conduct tensile, compression, high-cycle, low-cycle and fatigue crack tests and researches on various materials and components.
Specification
|
Technical Parameter Name |
Technical Parameter Value |
|
Maximum Test Force |
Static 2000kN, Dynamic ±1000kN |
|
Test Force Indication Accuracy |
≤±1% |
|
Displacement Indication Accuracy |
≤±1%F.S (Full Scale) |
|
Frequency Range |
0.1~10Hz, stepless adjustable |
|
Control Mode |
Two control modes: Load and Displacement, mutually switchable |
|
Effective Test Force Measurement Range |
2%~100%F.S (No range switching in full scale, equivalent to 4 ranges) |
|
Actuator Piston Stroke |
±50 mm |
|
Computer Control Function |
Automatic zero adjustment and range switching for load via computer; range switching for displacement via computer; zero adjustment and range switching for deformation via computer; PID regulation for displacement and load via computer; function generator waveform control; smooth switching between three control modes: Displacement, Load and Deformation |
|
Safety Protection Function |
Overload protection, limit protection, fracture protection, fatigue protection, emergency stop |
|
Oil Source Control Mode |
Intelligent servo control |
|
Distance Between Columns |
1500mm |
|
Power Supply Power |
Approx. 150 kW |
|
Operating Noise |
≤60dB |
|
Overall Equipment Dimensions (L×W×H) |
Approx. 2000×2000×2600mm |
