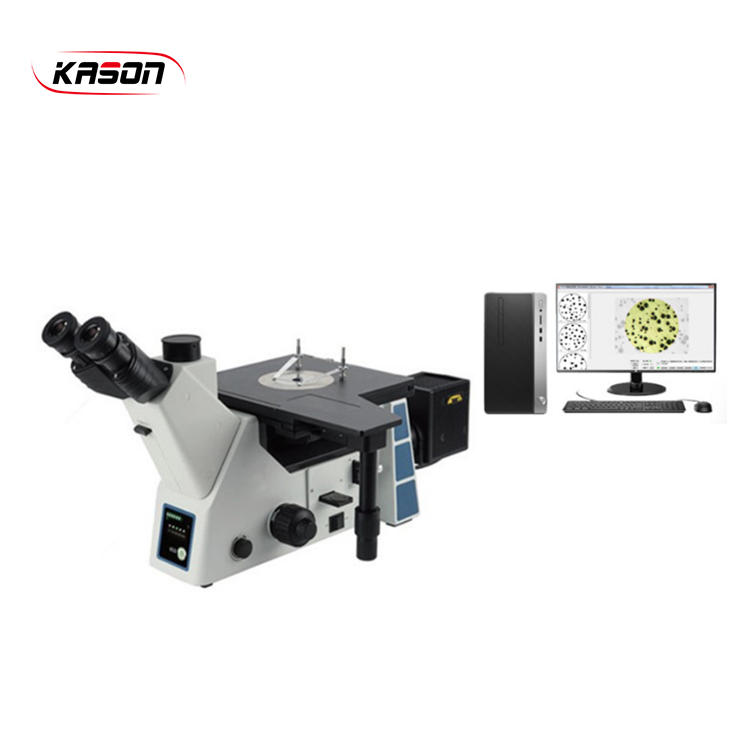

FX-41MW Computerized Research Grade Metallurgical Microscope

1. Introduction

The FX-41MW computerized research-grade metallographic microscope is a trinocular inverted metallographic microscope with a newly designed infinity optical system. It can be widely used in casting, smelting, heat treatment research, raw material inspection or material processing analysis Inverted microscope. The machine comprehensively covers various observation methods such as bright field, dark field, simple polarized light, differential interference, etc., and adapts to various research needs.

l Comfortable and simple operating mode

In order to meet the long-term observation needs of users, the FX-41MW uses a low-hand position operation mode and is equipped with a 360 ° rotating binocular observation tube, which fully conforms to the ergonomic observation mode.

l Stable and intimate design

The FX-41MW body is made of all-metal casting, the surface is treated with anti-corrosion and wear-resistant technology, and the quality is guaranteed and solid. Make full use of the built-in space of the fuselage, place the instrument disassembly tool, which is generally used to disassemble the main parts of the instrument, pragmatism, convenient storage.

l Front magnification display function

The front objective magnification display function, through the built-in magnification sensor, displays the current magnification in front of the instrument, making the research work more convenient.

l New intelligent ECO system

The ECO infrared sensor system with the concept of environmental protection and economy is added. When the microscope has not been operated for a long time, the system will automatically turn off the power or turn it on again to save energy.

2. Specifications

Note: “·“ is standard configuration; “O” is optional

Image analysis software system

This metallographic image analysis software system is our company's combination of current casting companies, auto parts companies, heat treatment companies, bearing steel industry, power system industry, railway parts industry, and various related testing companies' demand for metallographic detection to improve products. The pass rate helps to improve the inspection level of various laboratories. We collected the opinions of experts and teachers in various industries and developed this metallographic image analysis software system.

The software system contains about 700 commonly used sub-modules in 150 categories, basically covering the commonly used metallographic standards, and adapts to the requirements of most unit metallographic analysis and inspection. According to the needs of different industries, open and relevant categories are specified to meet industry testing requirements.

In view of the continuous increase of new materials and imported brand materials, materials and assessment standards that have not been entered in the software can be customized and entered.

Software installation is more intuitive and concise

The brand-new software installation, registration, and calibration boot mode are simple and clear, and can be completed through the default prompt.

Genuine software guarantee system

After the software installation is completed, first activate the genuine software, and then register the computer hardware ID to ensure the genuine rights and interests of customers.

Demand standards can be customized

In addition to the standard detection module, the detection module can be customized according to customer needs, such as: enterprise standards, special industry standards, etc.

Report template can be modified

Report templates can be customized for different companies.

Genuine software can be upgraded

Perform free software upgrades based on the implementation time of the National Standardization Committee.

Suitable for computer system

This software can be installed and run under Windows 7 and Windows 10.

Basic functions:

1. Rating level

The implementation standard for the correct selection of materials, through the camera system of the metallurgical microscope, capture and take pictures of the sample metallographic structure, and enter the evaluation level interface:

(1) Automatic rating: There are quantitative standards (such as calculation formulas, percentage ranges, etc.) in the metallographic standards. The software automatically grades, gives the metallographic level, and generates a metallographic test report.

(2) Comparison rating: The software can also compare the sample map and the map in the gallery to determine the level artificially.

2. Geometric measurement

The software provides a variety of measurement tools such as distance, rectangle, circle, polygon, polyline length, angle, straight line angle, radian, point-to-center measurement, etc. to meet the user's basic geometric measurement functions and obtain relevant measurement data.

(1) Data export: the measured data can be used to generate a dedicated measurement report with graphics and text, and can also be directly imported into EXCEL.

(2) Save the image: the measured data can be automatically integrated with the picture, and the accuracy of the measured part is displayed intuitively and clearly.

3. View Gallery

The software provides the function of viewing gallery, and provides users with the latest national standard level gallery.

4. Fixed printing

The software provides fixed-size printing function, users can achieve fixed-size printing of pictures according to the actual printing multiple requirements.

5. Image stitching

For customers who need to detect a larger field of view, the image stitching function is provided in the software to meet the needs of larger field of view image capture, which solves the embarrassment of unable to take pictures caused by the lack of microscope field of view.

6. Professional functions

It provides customers with professional function customization windows, and can customize relevant functional modules according to customer needs: such as confocal images, three-dimensional light maps, image databases, and image comparison.

Software system composition:

1. Software program (U disk);

2. Dongle: USB type + dynamic code verification;

3. Text information: "Instruction Manual" (on U disk);

4. 0.01mm micrometer scale.

5. CCD camera device.

6. Adapter mirror interface.
