1. Application:

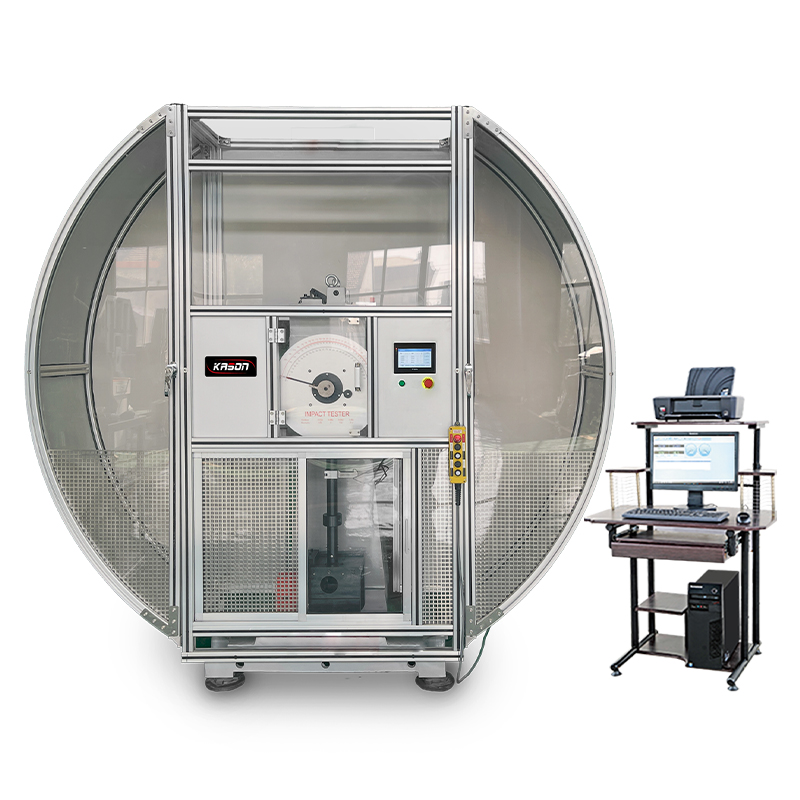

Model PIT302JX Computer Screen Display Charpy and Izod Pendulum Impact Tester is high performance pendulum impact tester that precisely determines absorbed impact energy and resistance to breakage of metallic specimens. With the computer display, it can show test result and test curve in real time easily. Designed for determination of the impact energy as Charpy and Izod impact methods according to ASTM E23, ISO, DIN, EN standards; Innovative mechanical design features make these testing machine top contenders on the market with excellent price/quality ratio as well as high accuracy. Universities, automotive and aero companies, research and R&D Labs, as well as steel plants are typical customers for these testing systems.
2. Standards:
Charpy Impact Test: ASTM E23, ISO148, ASTM A370 for Metals
Izod Impact Test: ASTM E23, BS 131 for Metals
3. Performance parameters:
MODEL
PIT302JX
Impact energy (J)
Charpy test
150,300
Izod Test
300
Notch Types
Charpy test
U and V-shaped notch
Izod Test
Only V-shaped notch
Striking Point
Charpy test
Middle of material
Izod Test
The upper Tip of the material
Impact speed (m/s)
Charpy test
5.24m/s
Izod Test
4.6868m/s
Specimen and distance of pendulum contact wires to the symmetry of gap(mm)
Charpy test
10±0.5
Izod Test
22±0.5
Pendulum preparing angle
150°
Distance between pendulum center and sample center (mm)
Charpy test
750
Izod Test
600
Round angle of jaws (mm)
Charpy test
R1-R1.5
Izod Test
R0.4
Round angle of striking edge (mm)
Charpy test
R2-R2.5
Izod Test
R0.66
The impact blade thickness (mm)
Charpy test
16
Izod Test
15-20
Size of specimen (mm)
Charpy test
55*10*10
Izod Test
127 x 11.43 round bar for meta
The angle of sample front and pendulum underside
100±1°
Size of specimen (mm)
10×10×70~126mm square sample Φ11.43×71~127mm round sample
Power supply
3p 4-wire 380V 50Hz or specified
Dimensions (mm)
2124*600*1340
Weight(KG)
450
