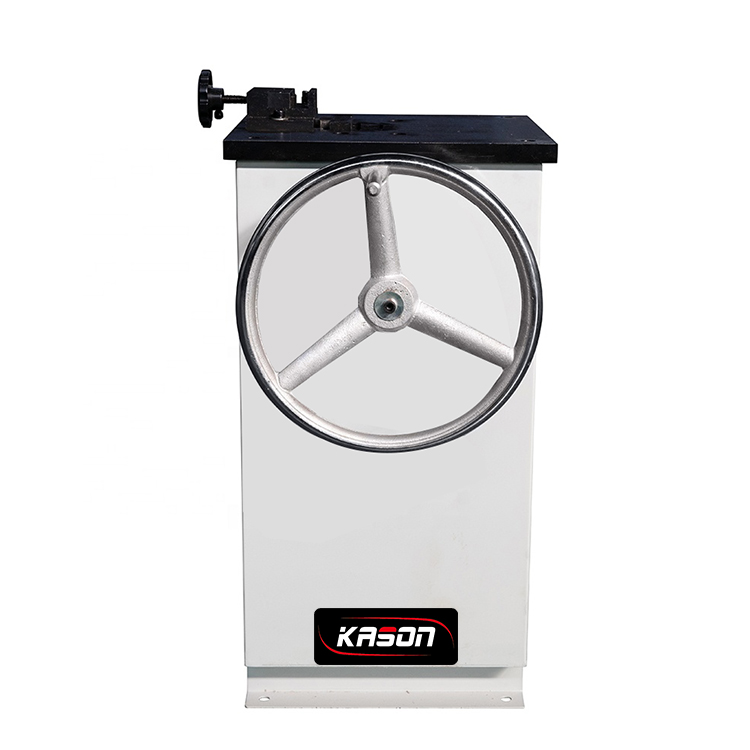

KASON CSL-A Manual Charpy Impact Specimen Broacher
Application
Designed for providing the specimens used in the impact testing tasks. Both manual type and hydraulic type are available to cutting the notch according to the “V” ASTM E23, ISO148 standards,U” DIN 50115 and ISO83 standards “Charpy Notch Impact Test Method for Metal Material” on the specimenfor only one time. At the same time, it has advantages of high precision, long life, low noise and concise appearance etc.
Specifications
|
MODEL |
KASON CSL-A |
|
Shape of sample notch |
2 mm V type Or 2 mm U type， (U 3 mm, U 5 mm is optional ) |
|
Sample size(mm) |
55x10x10 , 55x10x7.5 , 55x10x5 |
|
Cutting mode |
Manual |
|
Broach material |
W18 Cr4V |
|
Power supply |
220V 60Hz 400W |
|
Max. Dimension(mm) |
350×350×600 |
|
Weight(KG) |
100 |
