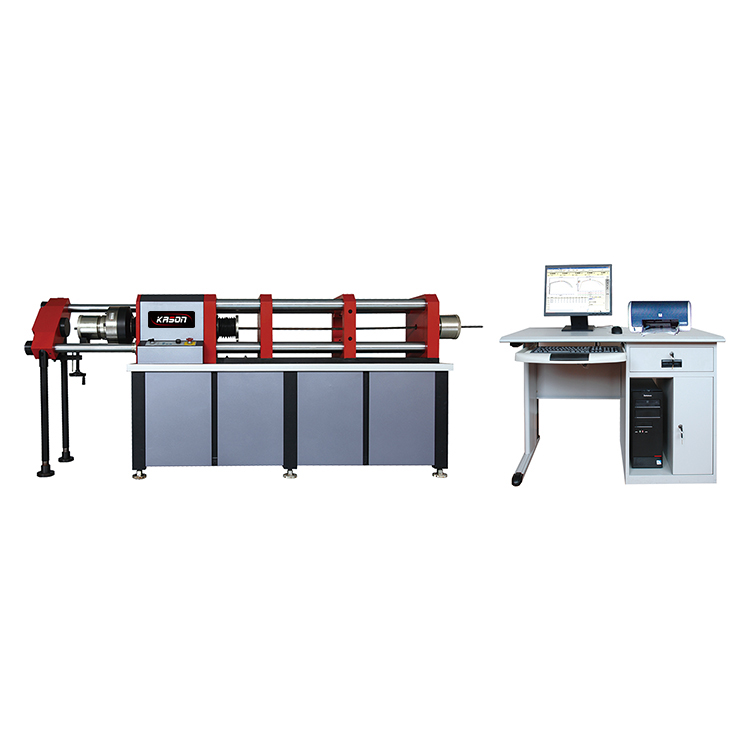

Microcomputer controlled tensile stress relaxation testing machine for steel strand
Application:
This machine is used to do stress-relaxation test of steel strand, galvanized steel wire, indented wire etc
metal materials. The host machine adopts horizontal structure, adjust work space by lead screw, and the
transmission system is inside the machine base, the machine has very high stiffness, which guarantee
the accuracy of test results.
Test standard:
--ISO15630-3: 2010 Steel for reinforcement and prestressing of concrete- Test methods part 3: prestressing steel
--ASTM E328-13: Standard test methods for stress relaxation for materials and structures
--ASTM A416 Standard specification for low-relaxation, seven-wire steel strand for prestressed concrete
Main Specifications:
Model
KSC-300
KSC-500
Max. Load
300kN
500kN
Measuring range of test force
12-300kN
20-500kN
Accuracy of indicating force: ≤±1%
≤±1%
Loading speeding
100-5000N/s, arbitrary setting
Loading speed relaxation test space
2000mm
Chuck displacement speed
0.001-25mm/min
Accuracy of chuck displacement speed
±0.5%
Displacement resolution
0.001mm
Tensile stroke
0-100mm
Creep of load cell
≤0.2% (within 30 minutes
Specimen Dimensions(Optional according to customer requirements)
PC Strand
φ9.53mm,φ12.7mm, φ15.24mm
PC wire
Φ3~Φ9
PC Bar
Φ7~Φ18
Resolution of temperature sensor:
0.1℃
Accuracy of temperature sensor
0.3℃
Power supply
3-phase,5 wires (3 live lines L,1 null line N,1 earth line PE) 380V,50Hz
