Compression Universal Material Testing Equipment
1.Application:

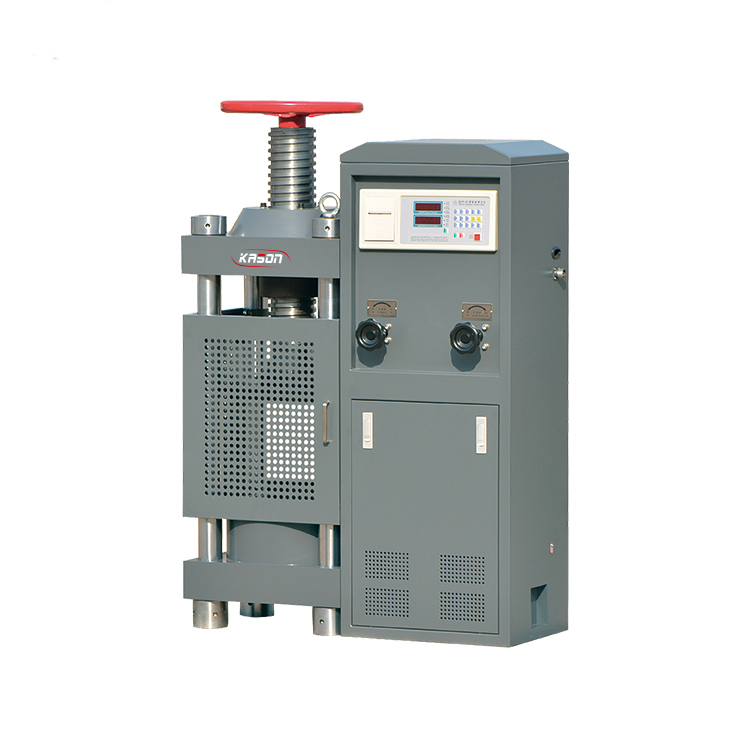

KSCTM206S Digital Display Compression Testing machine mainly used for Concrete Cube and other
material compression resist Testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,
R&D institution lines. The Test operation and data processing meets standard requirements.
2.Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
3.Main Specifications:
|
Model |
KSCTM206S |
|
Max. Load |
2000 kN |
|
Class |
1 Class |
|
Testing Space Regulating Way |
Manual Ball Screw Adjust |
|
Control Way |
Manual Control Load Way |
|
Oil Source Control Cabinet Structure Form |
One-piece Bench Oil Source Control Cabinet |
|
Range Of Test Force |
4% ~100% FS |
|
Indicating Value Accuracy |
±1% |
|
Piston Stroke |
50mm |
|
The Largest Spacing Of Upper And Lower Pressure Plate |
320mm |
|
The Largest Spacing Of Two Columns |
270mm |
|
Pressure Plates Size |
250*250mm(L*W) |
|
Display |
LCD Digital Display |
|
The Host Dimension |
900×400×1150mm |
|
Power Supply |
1KW/AC380V |
|
Weight |
750 KG |
