Application

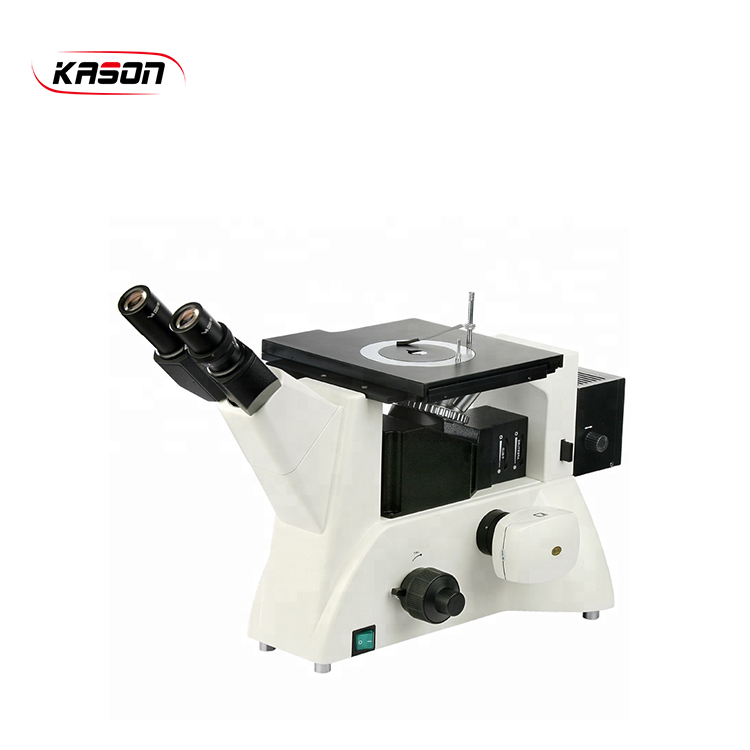

-MR5000 meets your entire requirement by high performance optical system, technological innovation, high stability; it also can be easily upgraded for DIC observation
Infinitive optical system providing excellent optical functions, with stable stand structure, advanced stage design and comfortable operation, it is widely used in insitute and laboratory to observe and identify the structure of various metall and alloy.
Specification
Optical System
Infinite optical system
■
Extra Wide Field Eyepiece
EW10X/22
■
EW10X/20 Eyepiece with Scale of Cross hair
■
EW15X/16
□
EW20X/12
□
Infinite LWD BF/DF Plan Achromatic Objective
5X/0.12/∞/-(BF/DF) LWD 10mm
■
10X/0.25/∞/-(BF/DF) LWD 10mm
■
20X/0.4/∞/0(BF/DF) LWD 5mm
■
50X/0.75/∞/0(BF/DF) LWD 1.3mm
■
100X/0.9/∞/0(BF/DF) LWD 0.7mm
■
Viewing Head
Siedentopf binocular viewing head, Inclined at 30°, Interpupillary 48mm-75mm
■
Kohler Incident Light
12V/50W Halogen light, Center and brightness adjustable
■
Polarizer and analyzer
■
DIC(5X-10X-20/50/100X)
□
Built-in Green, Blue, Yellow, Gray and ground glass
■
Focusing
Coaxial coarse and fine adjustment, fine division 2µm
■
Nosepiece
Backward quintuple nosepiece
■
Stage
Double layer mechanical stage 226x178mm, Moving range 40mmx40mm
■
Stage Φ 16, Φ 40, Teardrop
■
Accessories
Specimen presser
□
Photo/Video attachment
□
0.01mm Micrometer scale 0.01mm
■
Lamp House Adjustment Objective
■
Note : ■Standard Outfit, □Optional
