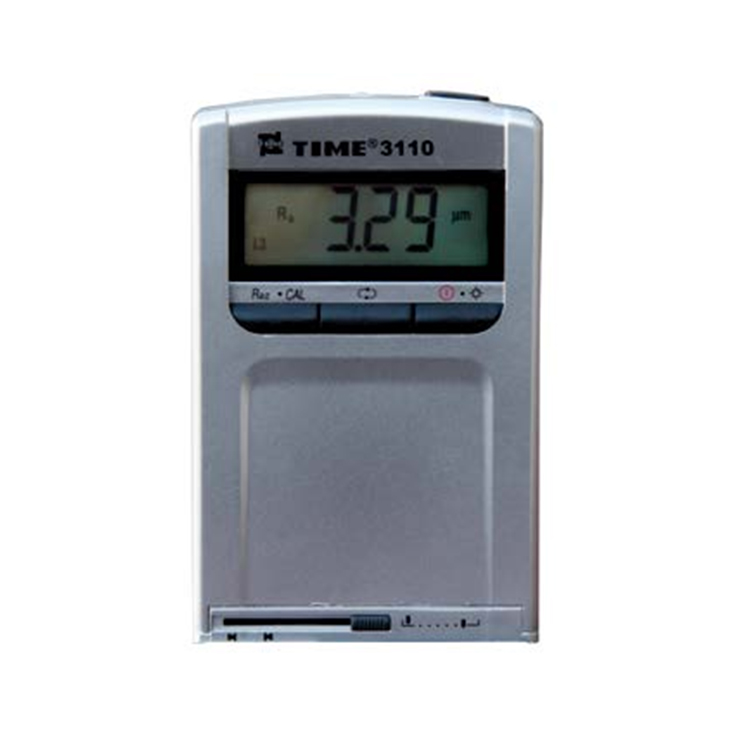

TIME®3110 Surface Roughness Tester
1. Features
-Pocket-size unit with economical price, widely used in production lines, workshops and labs.
-Wide measuring range suitable for most materials, and applicable for flat, outer cylinder andsloping surface
-Ragged design device with a long lifetime, while keeping the accurate and reliable data results
-Both Ra and Rz measurement range
-All calculated measurement results shown on its LCD back-lit display hardly after testedo
-lndicator and alarm for low battery, out-of-limit values and dysfunction
-Chargeable Li battery and improvement of the circuits function.
-lmprovement and Protection for sensor to secure the high accuracy and good stability.
-Conforms to ISO and DIN
2. Specification
Roughness parameter: Ra, Rz
Tracing length: 6mm
Tracing speed: 1.0mm/sec
Cut-off lengths: 0.25mm/0.8mm/2.5mm
Evaluation length: 1.25mm/4.0mm/5.0mm
Measuring range: Ra: 0.05-10.0um Rz:0.1-50um
Repeatability: <12%
Filter: RC analogue
Pick-up: Piezoelectric
Tracing length: 6mm
Tracing speed: 1.0mm/sec
Cut-off lengths: 0.25mm/0.8mm/2.5mm
Evaluation length: 1.25mm/4.0mm/5.0mm
Measuring range: Ra: 0.05-10.0um Rz:0.1-50um
Repeatability: <12%
Filter: RC analogue
Pick-up: Piezoelectric
