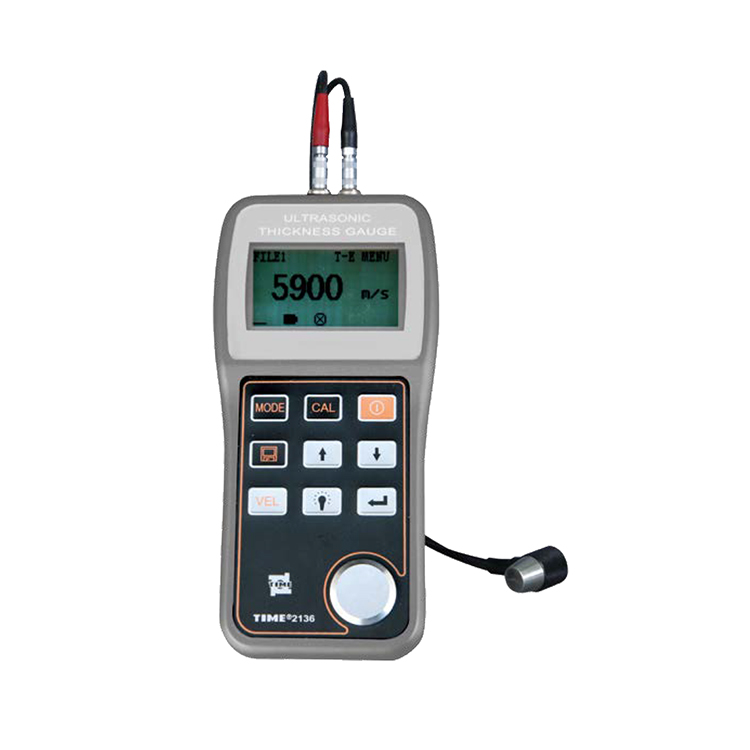

TIME®2136 Ultrasonic Thickness Gauge
1. Features
-Measure through coated surfaces and eliminatethe thickness of the paint using a dual elementstyle transducer in echo-echo mode
-ldentify the standard transducer automatically, orpreset the transducer frequency manually
-Transducer TSTU17 and TSTU32 are optional tomeasure various materials
-Connect to the printer or PC via RS232 interface
-Upper /lower limits pre-setting and sound alarm
-Differential mode shows the difference betweenthe test thickness value and the user-settingthickness range.
-Memory of 500 test data
-Resolution 0.001mm and 0.01mm selectable foryour use
2. Specification
Measuring range(dependson probe):
Transducer 5P dia.10/90°:1.2-200mm (steel in T-E testing mode)3~20mm(steel in E-E mode)
Transducer TSTU32: 5mm~300mm(steel in T-E testing mode)
Display resolution: 0.001mm or 0.01mm
Sound speed: 1000~9999m/s
Display: Backlight
Data output: RS232
Calibration plate: 4.0mm(steel)
Power: AA batteries 1.5V (2pcs)
