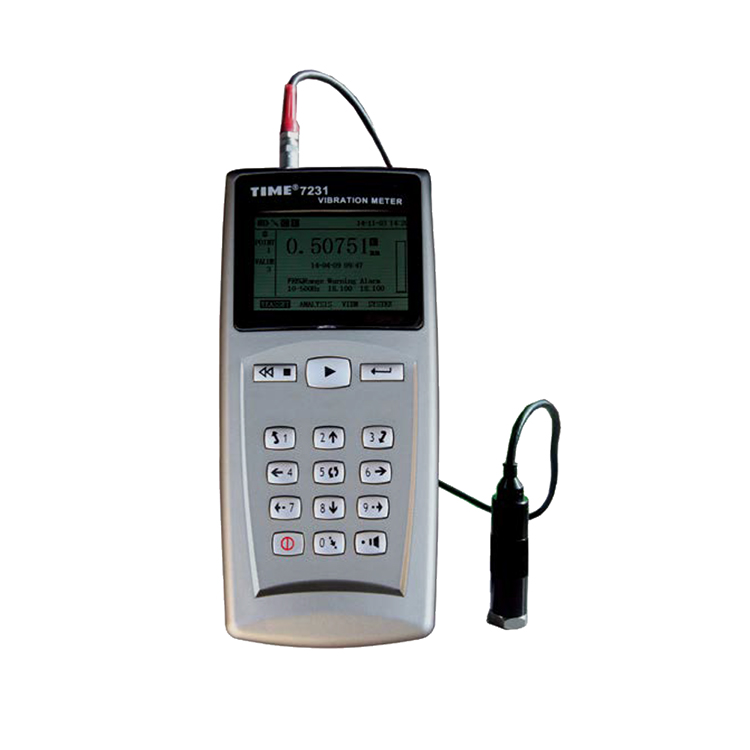

TIME®7231 Vibrometer
1. Features
-Two display modes: digital value mode andspectrum mode
-Large memory function: 100 x 100 measuredresults (100 testing points,100 data can bestored in each testing points), 100 spectrograms(each testing point can store one spectrogram)
-Spectrogram can display in real time
-Histogram can be made according to the presetalarm line
-Upper /lower limits pre-setting and sound alarmif test results out of imitation, which leads tospectrum analysis mode automaticallyConnected to PC with advanced software formore analysis needs
-Connect to the printer to print out the testingresult
-300 x 200 matrix LCD display with backlight
-TIME7231 equipped with low sensitivity probes.suitable for testing strong vibration
-TIME7232 equipped with high sensitivityprobes, suitable for testing weak vibration
-Conform toISO 2954，GB/T13824，GB138233Standards
2. Specification
Model: TIME°7231
Acceleration: 1m^2/s ~392m^2/s(Peak)
Velocity:0.1cm/s~80cm/s(RMS)
Displacement: 0.01mm~18.1mm(Peak-Peak)
Acceleration: 10Hz~200Hz，10HZ~500Hz10Hz~1KHz、10Hz~10KHz
Velocity: 10Hz~200Hz，10HZ~500Hz，10HZ~1KHz
Displacement: 10Hz~200Hz，10HZ~500Hz
Acceleration: 1m^2/s ~392m^2/s(Peak)
Velocity:0.1cm/s~80cm/s(RMS)
Displacement: 0.01mm~18.1mm(Peak-Peak)
Acceleration: 10Hz~200Hz，10HZ~500Hz10Hz~1KHz、10Hz~10KHz
Velocity: 10Hz~200Hz，10HZ~500Hz，10HZ~1KHz
Displacement: 10Hz~200Hz，10HZ~500Hz
