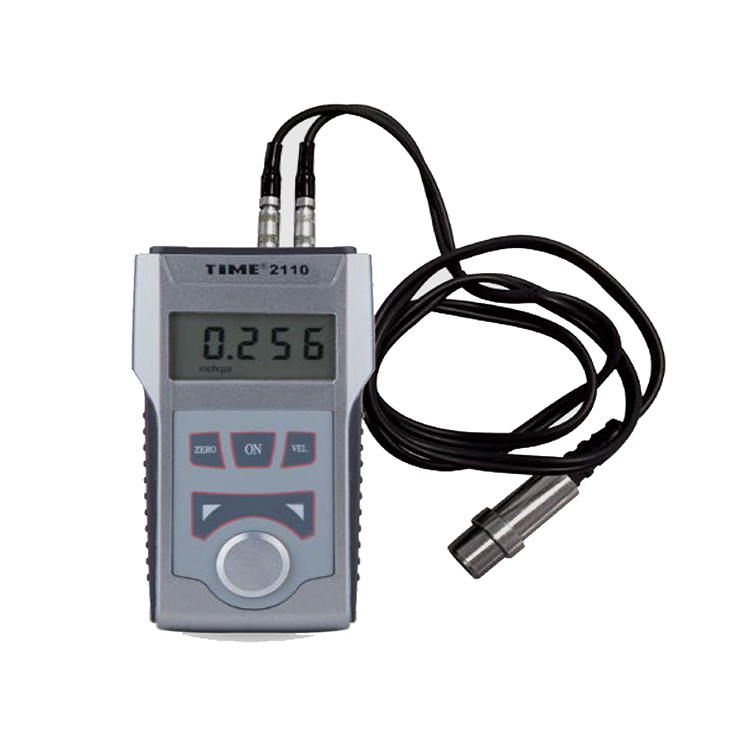

TIME®2110 Ultrasonic Thickness Gauge
1. Features
-Free conversion between metric and imperial
-Automatic calibration of zero point: automatically correct the system errors
-Automatic non-linear compensation: computer software is used to correct the non- linear errors ofthe probe for the purpose of improving the accuracy
-The upward and downward adjustment keys enableprompt selection of sound velocity, thickness, andcheck the thickness memory units
-Prompt indication for coupling state
-Sound velocity can be measured according to the testblock's thickness
-Ten thickness values can be stored without loss afterturn-off
-Sound velocity of five different materials can be storeddirectly needless to search in the conversion table.
-Low voltage indication and automatic turn-off
-Oil proof protection for longer service life
2. Specification
Measuring range: 1.2~225.0mm
Display type: 4-digit LCD
Minimum display unit: 0.1mm
Sound velocity range: 1000m/s~9999m/s
Measuring error: +-(1%H+0.1) mm, H is the actualthickness of the object to be measured
Power supply: two AAA alkaline cells 1.5V
Power consumption: working current is smaller than 20mA(3V)
