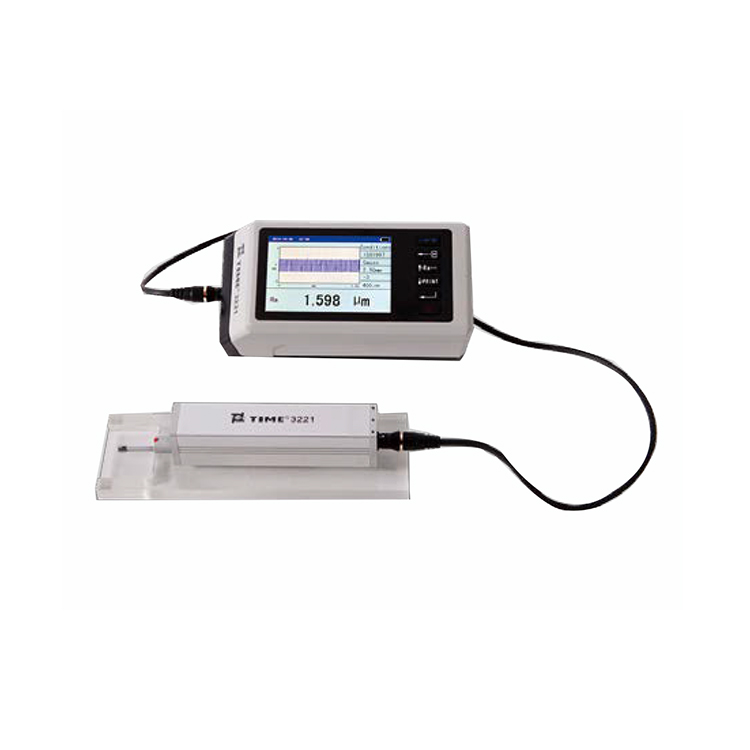

TIME®3221 Roughness Meter
1. Features
-Separated design, mini driver easy and convenient to use
-Multi measurement parameters: Ra, Rp, Rv, Rt, Rz, RqRsk, Rku, Rc, RPc, RSm, Rmr(c), tp, Rmr, Rpm, Rz1max,RZJIS，Rmax，Htp，Rc, RA9, RAa Pa, Pp,Pv, PtPz, Pq, Psk, Pku, Pc, PSm, Pmr(c), Pmr, Pz1max, PZJISP6c,PAq, Rk, Rpk, Rvk, Mr1, Mr2,A1,A2
-Touch screenwith TFT LCD showing all importantparameters and graphs
-High accuracy inductive pickup
-Filtering methods of 2RC, GAUSS
-Compatible with standards ofISO1997,ANSI and JIS2001
-Connected to the printer to print all parametersand graphs
-RS232 interface and USB interface meeting more needs
-Auto switch off
2. Specification
Test principle: Inductance type
Measurement range: 400um
Stylus tip radius: 5um/2um
Stylus tip material: Diamond
Measuring force: 4mN/0.75 mN
Stylus tip angle: 90°/60°
Radius of skid curvature: 45mm
Maximum drive range: 19mm/0.748inch
