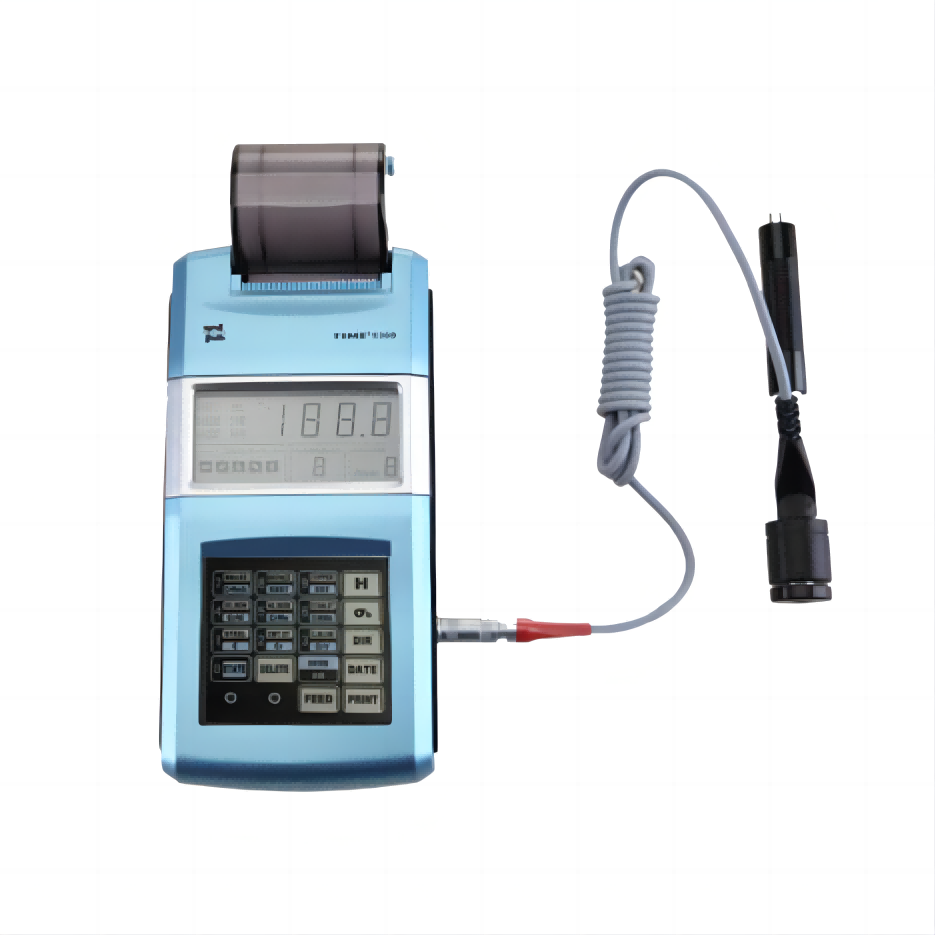

TIME®5300 Richter Hardness Tester
1. Features
-Simple menu, easy and convenient to use.
-Conversion of common hardness scales (HL, HV, HB,HRC,HRB,and HS)&conversion of tensile strength
-Screen display showing all the important values and information (including values.mean value(MEAN), numbers of measuring(NO.), date, impact direction, materialstested, hardness values and so on)
-7 types of optional impact devices, with auto recognition, universal standard Dtype included
-High accuracy and various material options for testing including Steel and Caststeel, Forged Steel, Cold Work Tool Steel, Stainless Steel, Gray Cast lron,Nodular Cast lron, Cast Aluminum Alloys, Brass (Copper-zinc alloys), Bronze(copper-aluminum/copper-tin alloys), Wrought Copper Alloys)
-Measuring direction: any direction 360°even with probe pointing upIndication for charge and easy change for rechargeable batteryPrinter included and test values can be printed directlySoftware calibration
-Auto power off
2. Specification
Measuring range: (170-960)HLD(17.9-69.5)HRC
Hardness scale: HL,HB,HRB,HRC,HV, HS
Measuring direction: 360
Tolerance: +-6HLD(when HLD=760+-30)
Diameter for printer paper: 40mm
Width for printer paper: 44.5+-0.5mm
Power: 12V/600mA
Charging time: 2-3.5hrs
