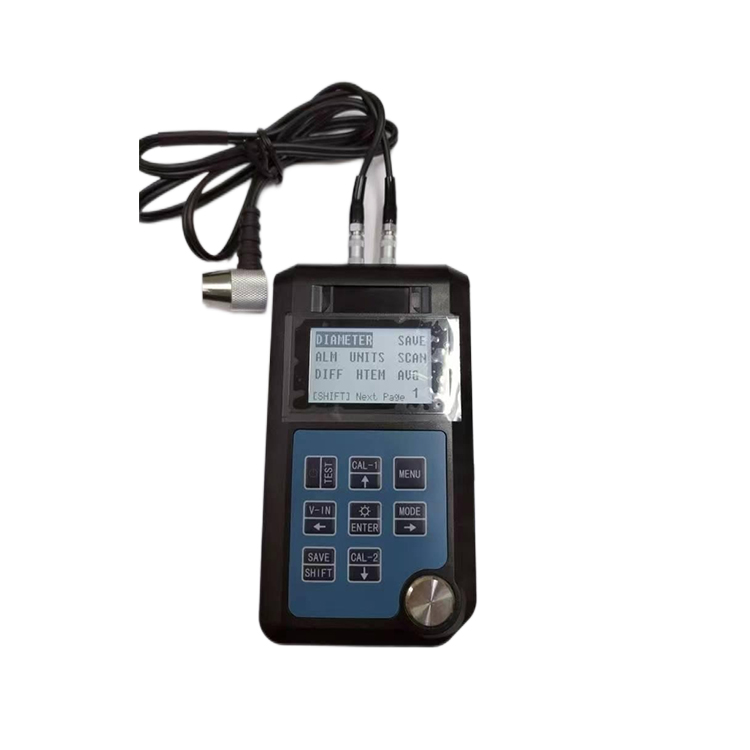

KS-XT260 Through Coating Type Ultrasonic Thickness Gauge
1. Product Introduction
This instrument is a multi-mode ultrasonic thickness measuring instrument, can measure the thickness of metal, non-metal materials, and can be measured on the sound velocity of materials. Compared with the traditional measurement method, the advantage of ultrasonic thickness measuring instrument is that it can complete the thickness measurement as long as it can touch the workpiece side. The instrument can accurately measure workpiece thickness without removing the paint coating layer on the workpiece surface. The instrument can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.
2. Specification
|
Measuring range |
0．65mm～500mm(Applicable to steel and probe sections) Standard probe measuring range is 1mm ~ 260mm |
|
(Standard mode) |
|
|
Penetration coating measurement range |
The thickness of coating is 0-3mm, and the thickness of substrate is 3mm ~ 25mm |
|
Surface measurement range |
Lower limit Φ15mm×1.0mm(5MHz, Φ10mm probe) |
|
|
Lower limit Φ10mm×1.2mm(7.5MHz，Φ6mm probe) |
|
Display accuracy |
0.01mm/0.001inch |
|
Material sound velocity |
509m/s～18699m/s |
|
Measurement accuracy |
±（0.5%H+0.05）mm |
|
Receiving bandwidth |
1MHz～10MHz(-3dB) |
|
Measurement frequency |
2～20Times/second (configurable) |
