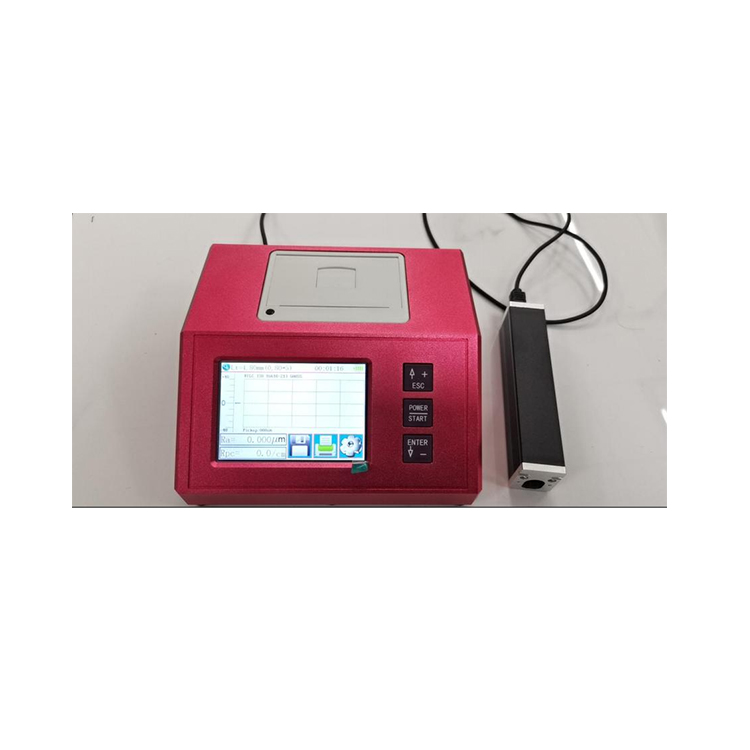

KS-280 Split Type Roughness Tester
1. Scope of application:
The detection of the surface roughness of metal and non-metallic parts to be tested is suitable for a variety of machined parts, mechanical processing manufacturing, testing, commodity inspection and other departments, especially for on-site inspection of large workpieces and production lines, as well as out-of-home inspection of testing, measurement, commodity inspection and other departments, without causing damage to the workpiece.
2. Parameters:
|
Name |
Content |
||
|
Measurement scope |
Z axis (vertical) |
640μm (-320μm~320μm) / 25200μin (- 12600μin~+12600μin) |
|
|
X axis (horizontal) |
17.5mm（0.69 inch） |
||
|
Resolution |
Z axis (vertical) |
0.002μm/±20μm |
0.004μm/±40μm |
|
0.008μm/±80μm |
0.020μm/±160μm |
||
|
0.040um/±320um |
|
||
|
Measurement project |
Parameter |
Ra Rz Rq Rt Rc Rp Rv R3z R3y Rz(JIS) Ry Rs Rsk Rku Rmax Rsm Rmr RPc Rk Rpk Rvk Mr1 Mr2 |
|
|
Standard |
ISO4287 international standard; ANSI B46. 1 American standard; DIN4768 German standard; JIS B601 Japanese standard |
||
|
Graphics |
Support ratio curve, roughness, original profile, filtered waveform |
||
|
Filter |
RC,PC-RC,Gauss,D-P |
||
|
Sampling length (lr) |
0.25,0.8,2.5mm |
||
