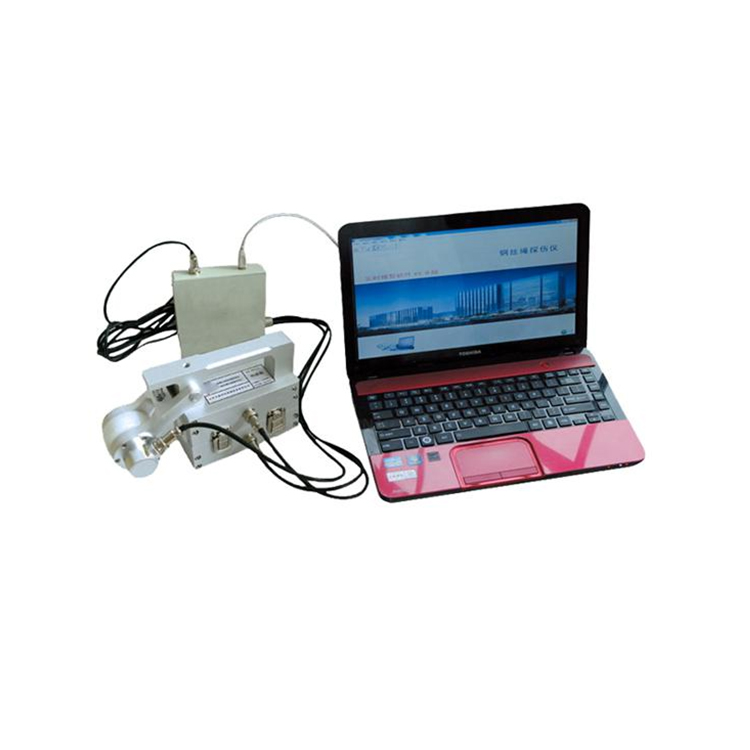

KS-10RT Wire Rope Flaw Detector
1. Application
◆It can detect various defects such as wire breakage, wear, corrosion, deformation, loose strands, skipwire and material change on-line in the wire rope.
◆The test result report can meet the standards of different industries and display the number of brokenwires and the ratio of the broken wire cross-sectional area to the total wire cross-sectional area.
◆Using computer USB interface to directly sample, process and analyze, with online sound andlight alarmand real-time display of results.
◆The sensor has a circular structure, circumferentially surrounding and axially magnetized, whichinstantlymagnetizes the wire rope to a saturation state.
2. Specification
|
Diameter of tested steel wire rope |
Φ1.5—300mm (User should choose sensor according to the diameter of wire rope as different sensors have different ranges.) |
|
Detection efficiency: |
0.0 to 6.0 m/s (relative speed between sensor and wire rope) |
|
The best detection efficiency |
0.3 to 1.5m/s |
|
Qualitative |
The accuracy rate of qualitative detection of single-point broken wire is 95% |
|
Quantitative |
The number of broken wires in a single set allows one or one equivalent root to be misjudged |
|
Detection sensitivity repeatability tolerance |
±0.055% |
|
Detection Accuracy Indication Allowable Error |
±0.2% |
|
detection length indication percentage error |
±0.3% |
|
Power supply |
computer battery powered 5V |
|
Sensor weight |
commonly used specifications <10kg |
|
Ambient temperature |
- 10℃~40℃ |
|
Atmospheric pressure |
86~206Kpa |
|
Relative humidity |
≤85% |
