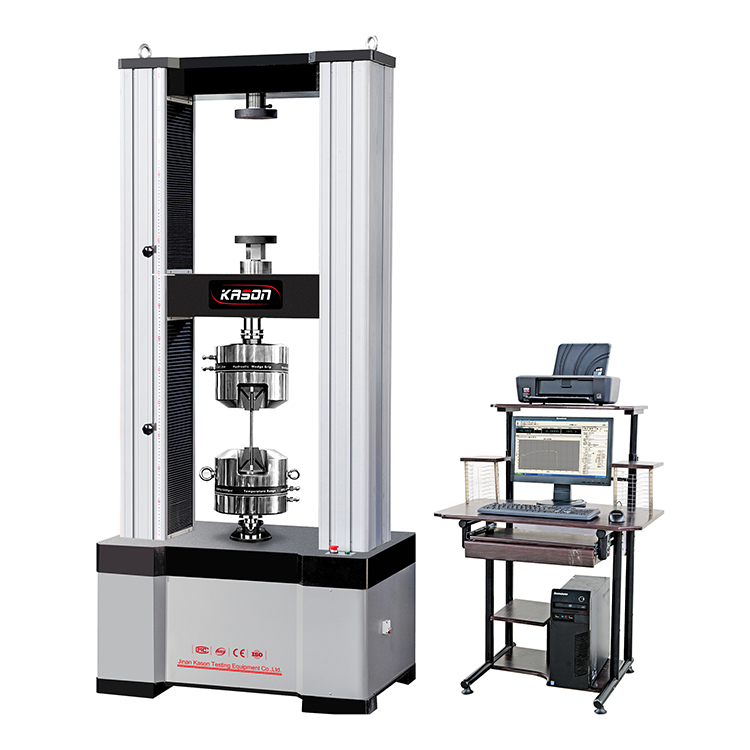

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standard:Main Technical Parameters:
Model | ETM505 | ETM 605 |
Load cell | ||
Calibration standard | ISO 7500 | |
Load Capacity (kN) | 500 | 600 |
Accuracy grade | ±0.5% of reading | |
Testing load accuracy | ±0.5% of reading | |
Deformation accuracy | ±0.5% of reading | |
Displacement Accuracy | ±0.5% of reading | |
Testing Force Range | 0.2%-100%FS | |
Force Resolution | 1/500000FS | |
Force accuracy | ±0.5% of reading | |
Controller | ||
Sampling frequency | Up to 1000 Hz | |
Closed loop control frequency | Up to 1000Hz | |
Resolution | 20 bit | |
Software | KASON TEST(Support English,Russian ,Turkish Language, etc. | |
Main frame | ||
Speed Range (mm/min) | 0.01-500 | |
Control Accuracy | ±0.5% | |
Crosshead Travel(mm) | 1100mm | |
Tensile Testing Space(mm) | 800 | 800 |
Compression Testing Space(mm) | 800 | 800 |
Test width (mm) | 700 | |
Compression Platen (mm) | Ф100mm | |
Power Supply | AC220V±10%, 50Hz/60Hz | |
Overall Dimensions (L*W*H: mm) | 1450*1140*2730 | |
Net Weight(kg) | 4000 |
