Equipment summary

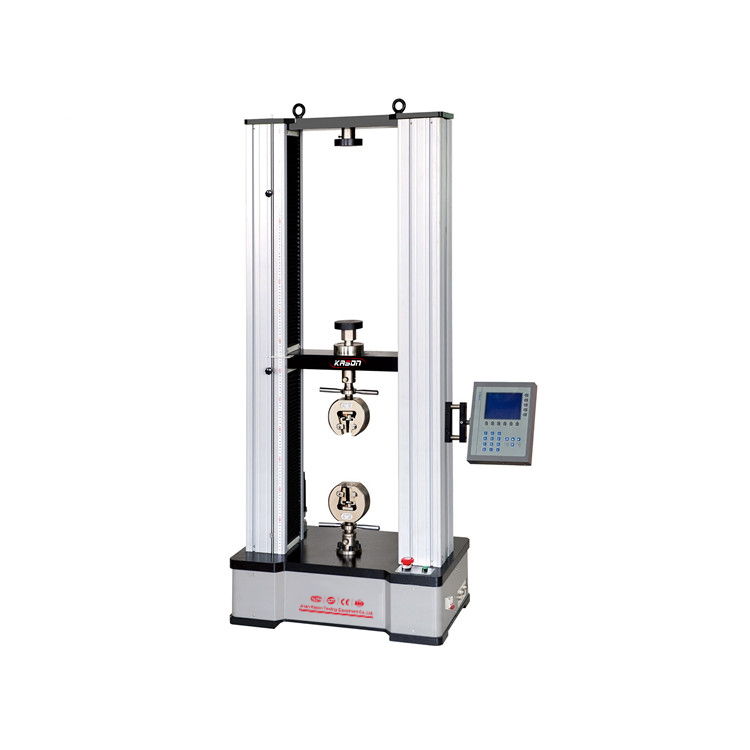

ETM-S Series Digital Display Type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 10ton.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB16491-2008, HGT3844-2008, QBT11130-1991, GB13-22-1991,HGT3849-2008,GB6349-1986, GB/T1040.2-2006,ASTMC165,EN826,EN1606, EN1607, EN12430 etc.
Specifications
Force Capacity | 10kN 20 KN 30 KN 50 KN |
Force Measurement | From10 K N to 50kN |
Force Accuracy | ±1% Measuring Value |
Force Resolution | 0,01mm |
Test speed | 0.01-500mm/min |
Tensile test space | 650mm |
Compression test space | 600mm |
Effective testing width | 400mm |
Power | AC220V, 50/60Hz |
