KASON ETM SERIE 10/20/50KN Computer Control Electronic Universal Tensile Testing Machine Price

Introduction:

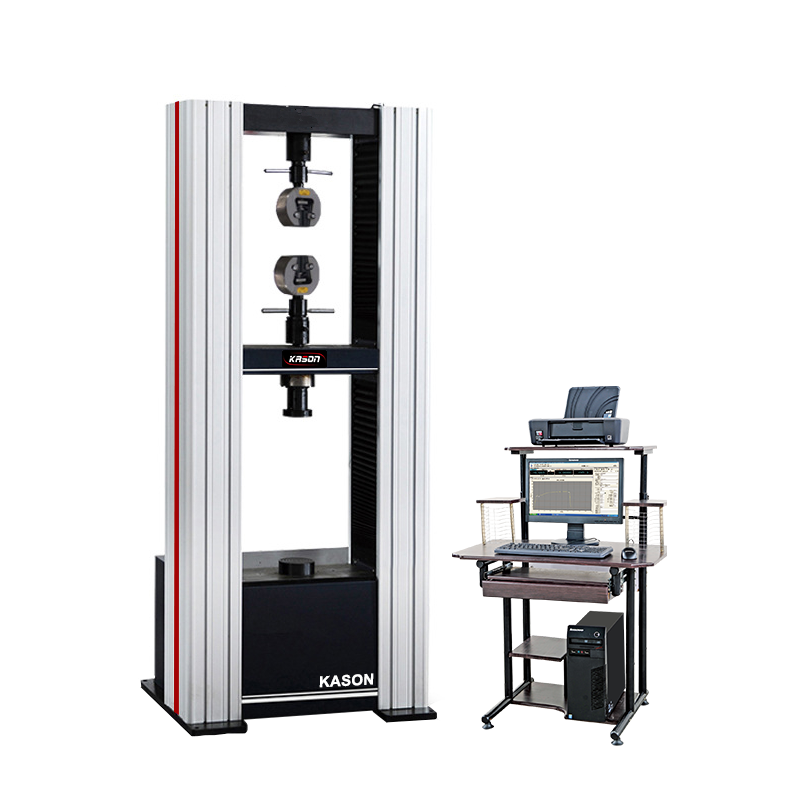

ETM Series Computer Servo Type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 10ton.

Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

Specifications:

• Force Capacity: 10kN 20KN 30KN 50KN
• Force Measurement: Interchangeable load cells available:      From10KN to 50kN
• Force Accuracy: 2% to 100%
• Load Capacity:±0.5% Measuring Value
• Force Resolution:1/30,0000
• Position Resolution:0,01mm
• Position Accuracy:±1%
• Test speed:0.01-500mm/min
• Crosshead Guidance:Precision Ball Screw with Independent Ground; Stainless Steel Guide Rods
• Tensile test space: 650 mm
• 1100mm including fixture
• Compression test space: 600 mm
• Effective testing width: 400mm
