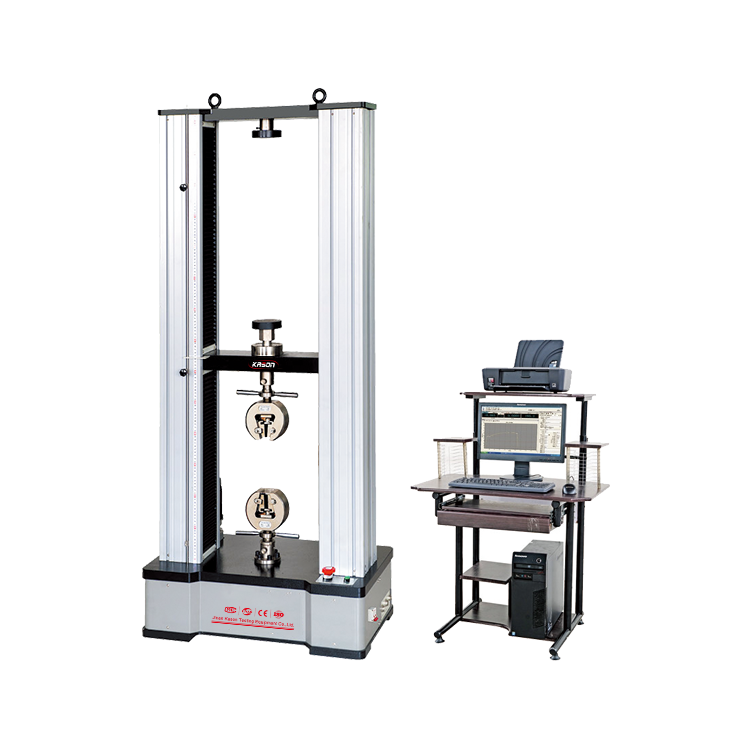

Tensile Universal Testing Machine UTM 10kn/20kn
Application:
This series materialstestingmachineproductgroup wasprimarilydevelopedforstandardizedtestsonma-terialsandcomponents.Usedinconjunctionwiththe intuitive KStest software.Typical test applicationsfor wide range of tension, compression, bending,shearing and low cycle test. include metal, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures,screws, nuts, etc.
Standards:
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,GB 16491-2008, HGT 3844-2008
QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430
Specifications:
| Model | ETM 104 | ETM 204 |
| Load cell | ||
| Calibration standard | ISO 7500 | |
| Load Capacity (kN) | 10 | 20 |
| Accuracy grade | ±0.5% of reading | |
| Testing load accuracy | ±0.5% of reading | |
| Deformation accuracy | ±0.5% of reading | |
| Displacement Accuracy | ±0.5% of reading | |
| Testing Force Range | 0.2%-100%FS | |
| Force Resolution | 1/500000FS | |
| Force accuracy | ±0.5% of reading | |
| Controller | ||
| Sampling frequency | Up to 1000 Hz | |
| Closed loop control frequency | Up to 1000 Hz | |
| Resolution | 20 bit | |
| Software | KASON TEST(Support English,Russian ,Turkish Language, etc. | |
| Main frame | ||
| Speed Range (mm/min) | 0.01-1000 | |
| Control Accuracy | ±0.5% | |
| Crosshead Travel(mm) | 1140mm | |
| Tensile Testing Space(mm) | 800 | |
| Compression Testing Space(mm) | 800 | |
| Test width (mm) | 400 | |
| Compression Platen (mm) | φ100mm | |
| Power Supply | AC220V±10%, 50Hz/60Hz | |
| Overall Dimensions (L*W*H: mm) | 740 x 420 x 1720 | |
| Net Weight(kg) | 160 | |
