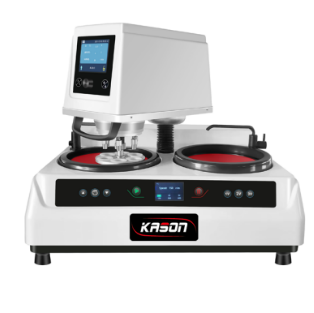

KASON Mopao4S Metallographic Specimen Grinding and Polishing Machine
Applications
The KASON Mopao4S automatic grinding and polishing machine is a double-disc desktop grinding and polishing machine. According to international standards, it adopts international advanced technology to develop and manufacture a new type of grinding and polishing equipment with single-point force addition. (No electronic proportional valve, manual pressure regulation)
Features
● Electronic lock head
● Pneumatic version automatic grinding head
● Integral moulding of high-strength FRP material shell, sturdy and durable, never rusty.
● The faucet adopts copper material, which has good corrosion resistance
● Stepless speed design, low noise, stable working performance. Can meet meet a variety of needs.
● With water cooling system
Technical Parameters
|
Model |
KASON Mopao4S |
|
Grinding Disc Diameter |
Ø250mm (Ø230mm, Ø300mm can be customized) |
|
Grinding and polishing disc speed |
50-1000 rpm (stepless speed regulation) and 300/600/900 rpm (3-level fixed speed) |
|
Grinding and polishing disc steering |
adjustable forward and reverse selection |
|
Grinding and polishing head speed |
5-150 rpm (stepless speed regulation) |
|
Number of prepared samples |
6 pcs |
|
Input air source |
0.4-0.7Mpa |
|
Sample preparation pressure |
20-70N single point and 0-300N center. |
|
Sample preparation time |
0-3000S |
|
Sample diameter |
standard Ø30mm (can be customized with diameters Ø22-Ø45mm) |
|
Dimensions and net weight |
735*570*590mm, 100kg |
|
Package Size and Gross weight |
860*750*755mm,120kg |
|
Power supply |
1.1KW,Single phase 220V, 50HZ |
Standard accessories
|
Name |
Qty |
Name |
Qty |
|
Metallographic sample grinding and polishing machine |
1 |
Oil and water separator |
4 |
|
Product Manual/Product certification/Standard accessories |
1 |
Magnetic Disk |
2 |
|
Polished velvet cloth Ø250 |
2 |
Anti-stick disc |
5 |
|
Metallographic sand paper Ø250 |
8 |
Leveling the feet |
4 |
|
Aluminum buckle ring Ø250 |
2 |
Power cable |
1 |
|
Grinding and Polishing disc Ø250 |
2 |
Dust cover |
2 |
|
Drainage pipe |
1 |
Single point clamping disc |
1 |
|
Inlet pipe |
1 |
Water retaining ring |
2 |
|
Pressure resistant tube |
1 |
|
|
