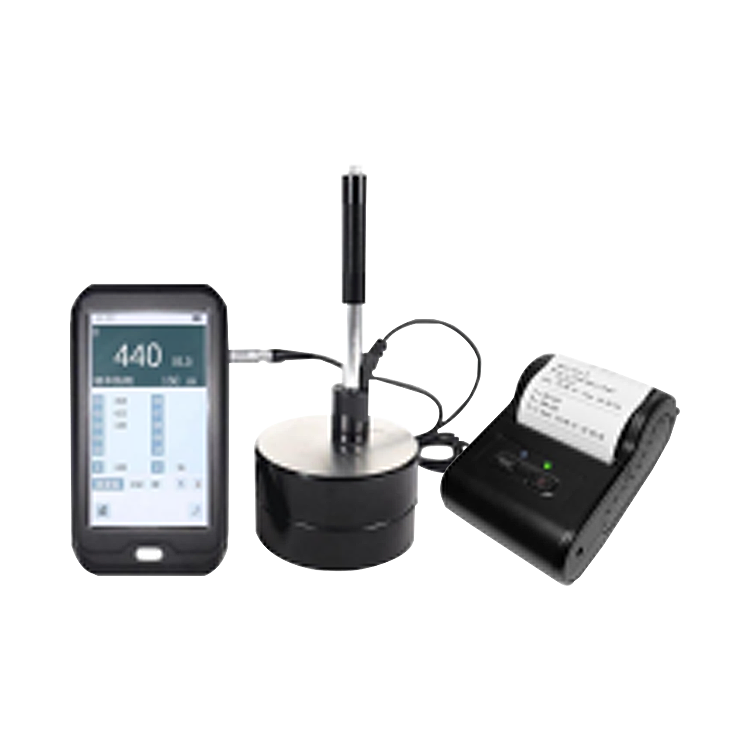

KS5300 Leeb Hardness Tester
Features
● Conversion of common hardness scales (HL, HV, HB, HRC, HRB and HS) & conversion to tensile strength
●7 types of optional impact devices, with auto recognition. Universal standard impact device D included.
●Touch scree display with back-light showing all the important values and information
●Memory of 48-350 groups of data
●Upper /lower limits setting and sound alarm
●RS232 interface for further management
●Software calibration
●Connected to printer and test values can be printed directly
Technical Specification
|
Measuring range |
(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA, |
|
Hardness scale |
HL,HB, HRB, HRC, HRA,HV, HS |
|
Measuring direction |
360o |
|
Tolerance |
±6HLD (when HLD=760±30) |
|
Repeatability |
6HLD (when HLD=760±30) |
|
Power |
1400mAh+3.7v 5.18Wh |
|
Charging time |
2 hours (with over-charged protection) |
|
Operating temperature |
0°C-40°C |
|
Dimensions (mm) |
330x330x150 |
|
Weight (g) |
5500 (including main unit and printer) |
|
Interface |
RS 232 |
