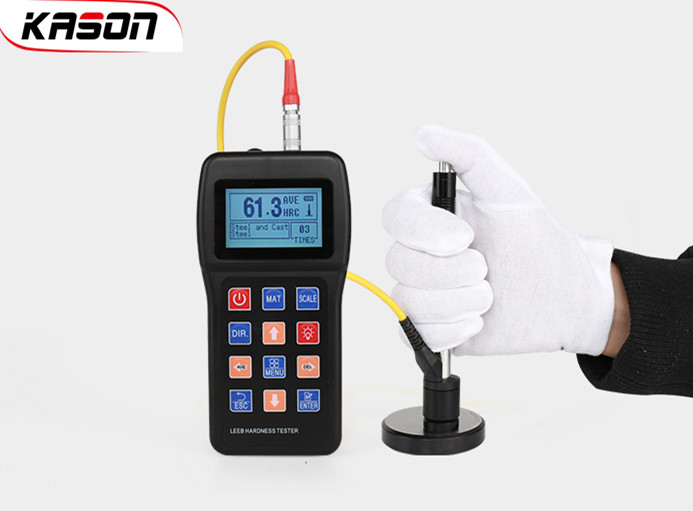

​KS5100 Portable Leeb Hardness Tester

Application:

1.Die cavity of molds

2.Bearings and other parts

3.Failure analysis of pressure vessel, steam generator and other equipment

4.Heavy work piece

5.The installed machinery and permanently assembled parts

6.Testing surface of a small hollow space

7.Material identification in the warehouse of metallic materials

8.Rapid testing in large range and multi-measuring areas for large-scale work piece

Technic Parameter：

Measuring range:(150-960)HLD(17-68.5)HRC(19-651)HB(80-976)HV(30-100)HS(59-85)HRA(13-100)HRB

Impact Directions:Up, down, horizontal, slanting up, slanting down

Standards:ASTM A956,DIN50156-1,GB/T17394-1998

Measuring direction:360°

Testing material:10 kinds

Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

Display:128*64 digital matrix LCD

Data memory:Max 500 groups. (relative to impact times 32~1)

Software calibration:±15HLD

Hardware calibration:±30HLD

Continuous working period:about 40 hours
