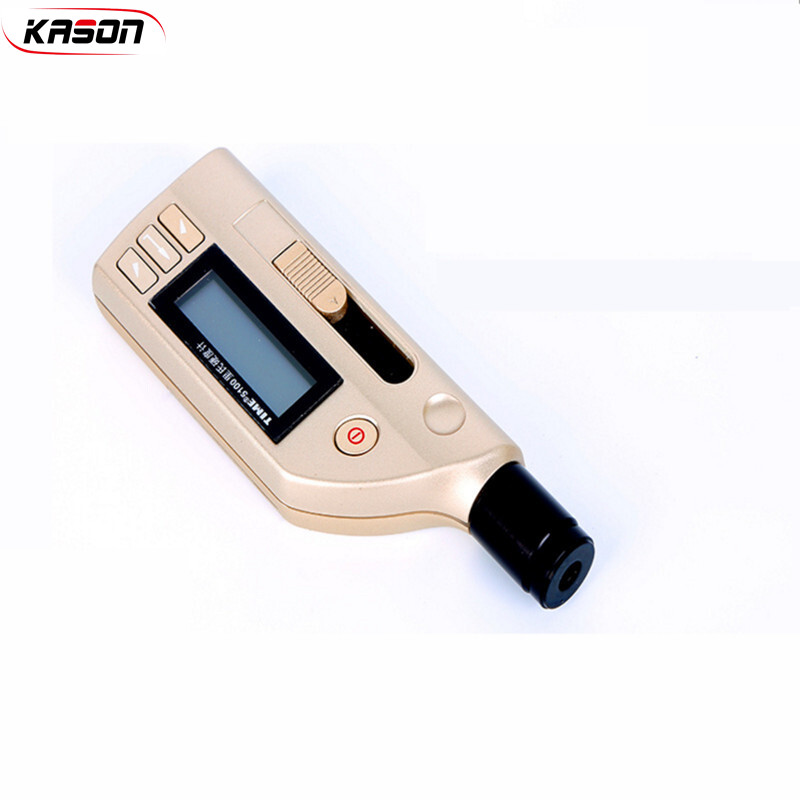

TIME5100/5102/5104 Pen Type Leeb Hardness Tester

Application:

Pen Type Hardness Tester TIME®5100/5102/5104 is economically priced and suitable for quick hardness testing on metal materials, especially on-site hard testing of large, non-transportable components.

Technic Parameter:

Model

TIME ® 5100

TIME ® 5102

TIME ® 5104

Impact device

D integrated

C integrated

DL integrated

Hardness scales

HLD, HB, HRC, HRB,HV, HS

HLC, HB, HRC, HRB, HV, HS

HLDL, HB, HRC, HRB,HV, HS

Accuracy

±6HLD(760 ±30HLD)

±12HLC

±12HLD

Memory

270 average readings in 9 group files

Output

RS232 to printer

Min. surface roughness of work piece

1.6μm ( Ra)

0.4μm ( Ra)

1.6μm ( Ra)

Max. work piece hardness

960HLD

960HLC

950HLDL

Min. radius of work piece (convex/concave)

Rmin = 50mm (with support ring Rmin=10mm)

Rmin=11mm (with support ring )

Rmin = 10mm (with support ring Rmin=10mm)

Min. work piece weight

2~5kg on stable support

0.05~2kg with compact coupling

0.5~1.5kg on stable support

0.02~0.5kg with compact coupling

2~5kg on stable support

0.05~2kg with compact coupling

Min. work piece thickness coupled

5mm

1mm

5mm

Min. thickness of hardened layers

0.8mm

0.2mm

0.8mm

Indentation depth

Impact devices data

Continuous working time

8h (without backlight)

Power

AAA 1.5V batteries

Operating temperature

0~40ºC

Dimensions (mm)

155×55×25

160×60×25

215×60×25

Weight (g)

180
