Scope of Application:

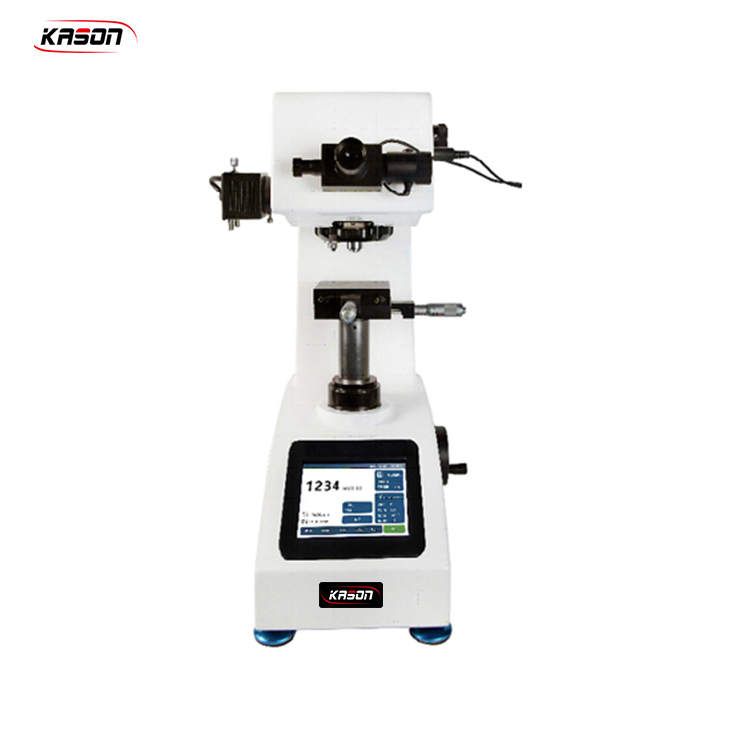

HTMV-1000AT Touch screen automatic turret digital display microvickers hardness testerIt is mainly used for the measurement of the micro Vickers hardness of various metals and some non-metal materials. It can test various parts (machined parts, forgings, cast iron, steel castings, etc.), non-ferrous metals, thermal after-treatment parts, and various micro And thin parts, glass, ceramics, agate, gemstones, etc. for hardness measurement, at the same time suitable for carbonization, quenching and hardening layer effective depth, coating, surface coating and welding parts heat-affected part measurement. It can also be used to observe the internal metallographic structure of various metal parts and to collect, display and output the image.
It is especially suitable for measuring the hardness gradient distribution curve of the workpiece and the surface hardness of the gear after heat treatment, and the effective hardening layer depth.
Technical Parameter:
Model: HTMV-1000AT
Test force: 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Min.test unit: 0.025µm Electronic measuring eyepiece
Exchange Scales: HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Measuring range: 5~3000HV
Test force application method: Automatic (loading, loading and unloading)
Test microscope magnification: 100X (Observation) 400X(test)
Test power and load retention time: 1~60s
X-Y Test table Size:100*100mm Maximum movement:25*25mm
Data output: LCD display readout, built-in printer and RS-232 interface
Max Height of Specimen: 110mm
Distance from the center of the head to the outer wall: 110mm
power supply: AC220V+5%,50-60Hz
Dimensions: 320*500*570mm
Weight About: 40Kg
