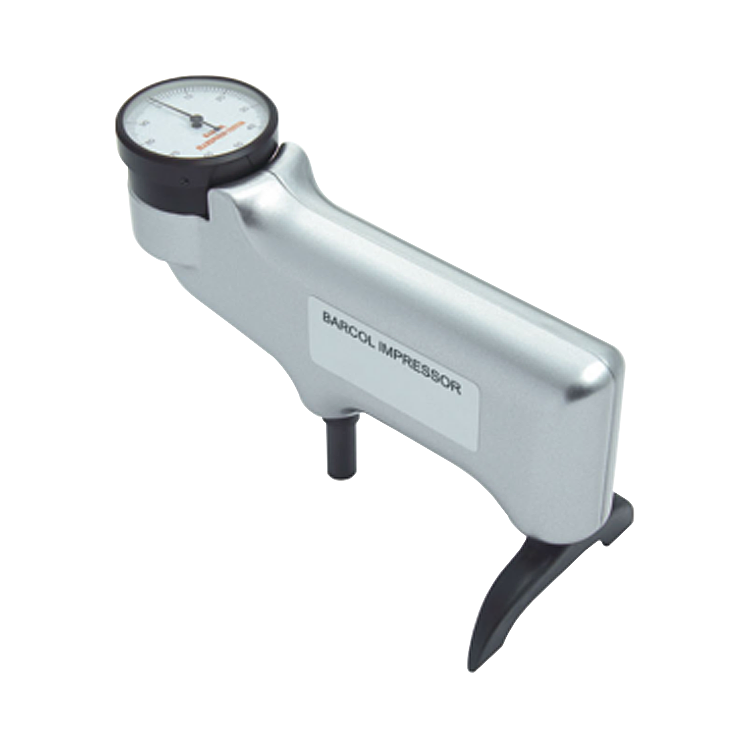

KASON-HBA-1 Barcol Hardness Tester
Application
The Barcol hardness tester is an indentation type hardness tester. It is fast, simple, and easy to test. It can be used to quickly test the hardness of aluminum and aluminum alloy materials and meet the American standard ASTM B648.
Technical Specification
|
Model |
KASON-HBA-1 |
KASON-934-1 |
KASON-934-1S |
|
Range |
0~100HBa |
||
|
Effective measurement range |
equivalent to 25~135HBW |
||
|
Resolution |
0.5HBa |
0.1HBa |
|
|
Hardness value conversion |
- |
HW,HV,HB,HRE, |
|
|
Indication error |
42~52 HBa ±2.0 HBa |
||
|
Repeatability error |
42-52 HBa ±2.5 HBa |
||
