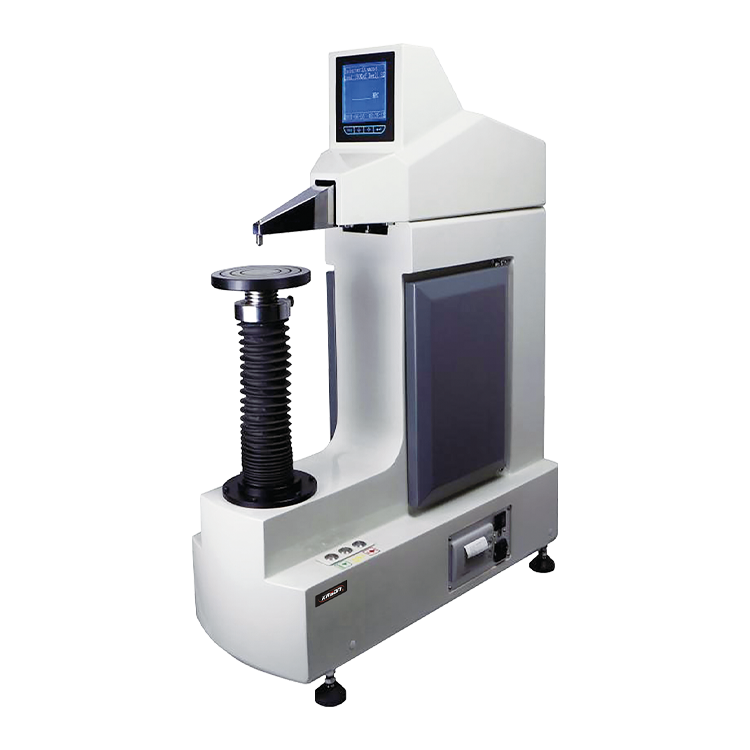

KS900-A Automatic Rockwell, Superficial Rockwell hardness tester
Function:
● Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.
● Horizontal dolphin nose Indenter is suitable also for internal and external testing.
● Testing on Surfaces difficult to reach. Testing internal surface of rings and tubes.
Parameters:
-Preload: 29.4N (3kgf), 98.1N (10kgf)
-Total test force: 147.1N(15kgf), 294 3N(30kgf), 441.3N(45kgf), 588.4N (60kgf), 980.7N (100kgf), 1471N (1
50kgf)
-Scales: HR15N, HR30N, HR45N, HR15T, HR3OT, HR45T, HR15W, HR30W, HR45W, HR1 5X, HR30X,
HR45X, HR15Y, HR30Y, HR45Y, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, RP, HRR,
HRS, HRV
-Load dwell duration: 2~50s, can be set and stored
-Resolution: 0.1HR
-Display: High definition backlight LCD
-Operation: Menu select-able, Membrane keypad
-Upper/lower limits setting & alarming
-Data statistics: Avg., Max, Min., S, R
-Curved surface auto correction
-Memory: Max 400 items of test results stored automatically
-Testing Capacity: 300mm (vertical), 220mm (horizontal)
-Dimensions: 690mmx280mmx860mm
-Power supply: AC, 220V/1 10V, 50~ 60Hz, 4A
-Net weight: 86 kg
-Gross weight:120kg
