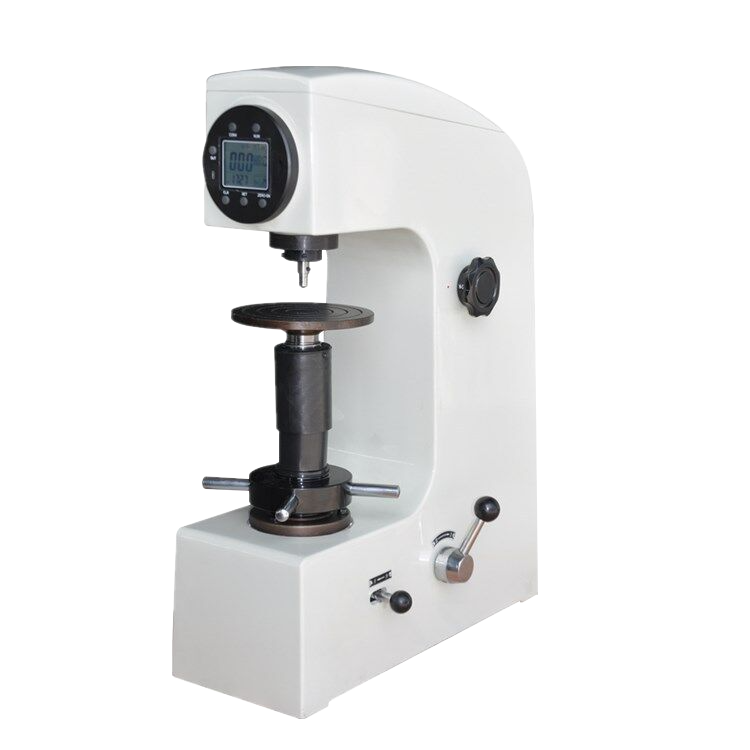

HTR-150AS Manual type digital Rockwell Hardness Tester
Features:
HTR-150AS is used to determine the Rockwell hardness of ferrous metals, non-ferrous metals, and non-metallic
materials. It is suitable for hardness testing of quenched and tempered, quenched and other heat-treated
materials and hardness alloy materials.
Technical Parameters:
|
Measuring range |
20-88HRA, 20-100HRBW, 20-70HRC |
|
Test force |
588.4, 980.7, 1471N (60, 100, 150kgf) |
|
The maximum allowable height of the |
170m |
|
The distance from the center of |
135mm |
|
Hardness resolution |
0.5HR |
|
Dimension |
466*238*630mm |
|
Weight |
65kg |
