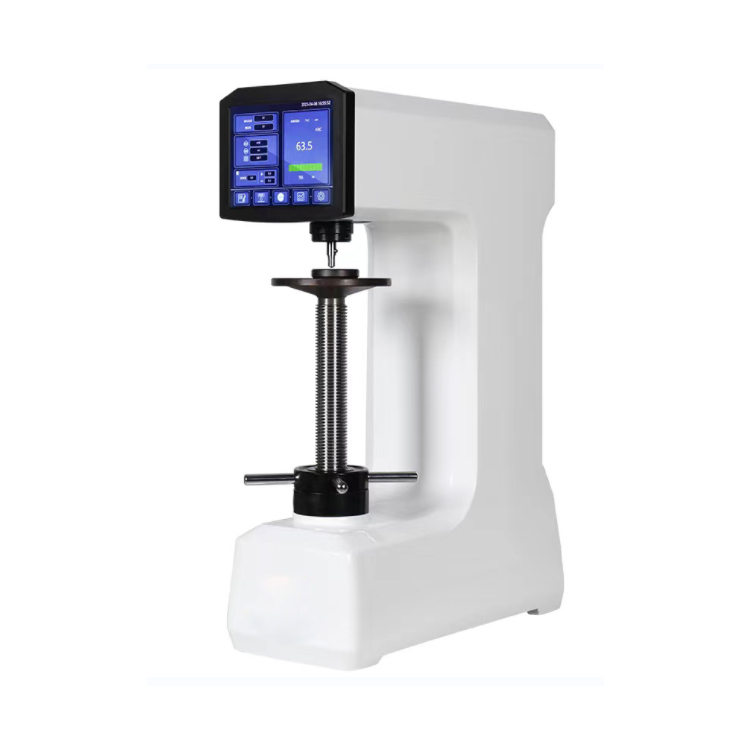

HTR-150/45T-Z Automatic Rockwell, Superficial Rockwell Hardness Tester
Introduction:
The Rockwell hardness test method can measure harder and softer samples by using diamond indenter and steel ball indenter. It is applicable to a wide range of scenarios and can be used to measure ferrous metals, non-ferrous metals, non-metallic materials, as well as quenching, tempering, etc. Heat treated Rockwell hardness. Such as hard alloy, carburizing pot, annealed steel, tempered steel, quenched steel, hard cast iron, mild steel, aluminum alloy, titanium alloy, malleable cast iron, etc. hardness measurement.
The HTR-150/45T-Z hardness tester is a new generation of touch-screen fully automatic Rockwell hardness tester developed by our company that integrates Rockwell and surface Rockwell. The appearance of the machine is professionally designed and adopts mechanical simulation technology, which makes the casing smaller and the testing space larger without affecting the performance. It is equipped with a color touch screen, built-in professional software, and a Bluetooth printer, which can Real-time printing and data output.
Technology parameter:
|
Testing power |
60kg, 100kg, 150kg, 15kg, 30kg, 45kg |
|
|
Measuring range |
20-95HRA, 10-100HRB, 10-70HRC, 70-94HR15N, 42-86HR30N, 20-77HR45N, 67-93HR15TW, 29-82HR30TW, 10-72HR45TW |
|
|
Indenter type |
Rockwell diamond indenter |
ф1.588mm steel ball indenter |
|
Test space
|
Maximum height allowed for specimens: 230 mm |
|
|
Distance from center of indenter to machine wall: 170 mm |
||
|
Operation method |
Automatic rise and return, one-touch operation |
|
|
Test force application method |
Automatic (initial test force, main test force loading, holding, and unloading are fully automatic) |
|
|
Measuring ruler |
HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV, |
|
|
Conversion ruler |
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
|
|
Hardness value display mode |
HV, HK, HRA, HRBW, HRC, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW |
|
|
Hardness resolution |
Touch screen display (computer display optional) |
|
|
Power supply |
0.1HR |
|
