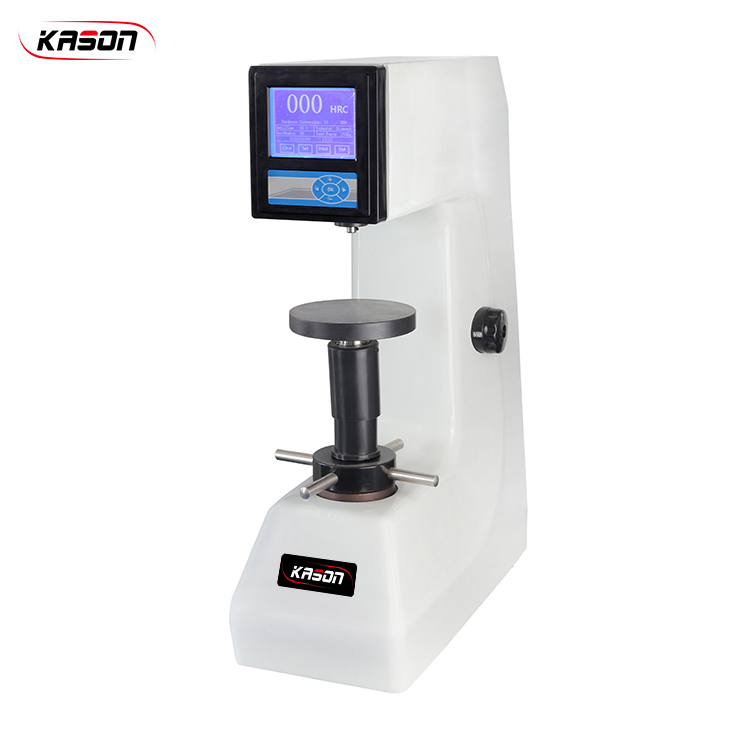

HTPR-150S Digital Display Plastic Rockwell Hardness Tester
Application:
Plastic Rockwell Hardness Tester is a specialized test non-metallic, plastic, hard rubber, synthetic resin, friction material and soft metal hardness tester.
Specifications:
| Model | HTPR-150S |
| Function | Electric |
| Indication of hardness value | Digital display |
| Data output |
Built-in printer, RS232
|
| Total test force |
588.4N, 980.7N, 1471N (60, 100, 150kgf)
|
| Measuring range |
70-100HRE, 50-115HRL,50-115HRM, 50-115HRR.
|
| Max. test height | 210mm |
| The distance between pressure head center and the wall | 135mm |
| Hardness resolution | 0.1HR |
| Dimensions | 510*230*730mm |
| Power supply | AC 220V 50Hz |
