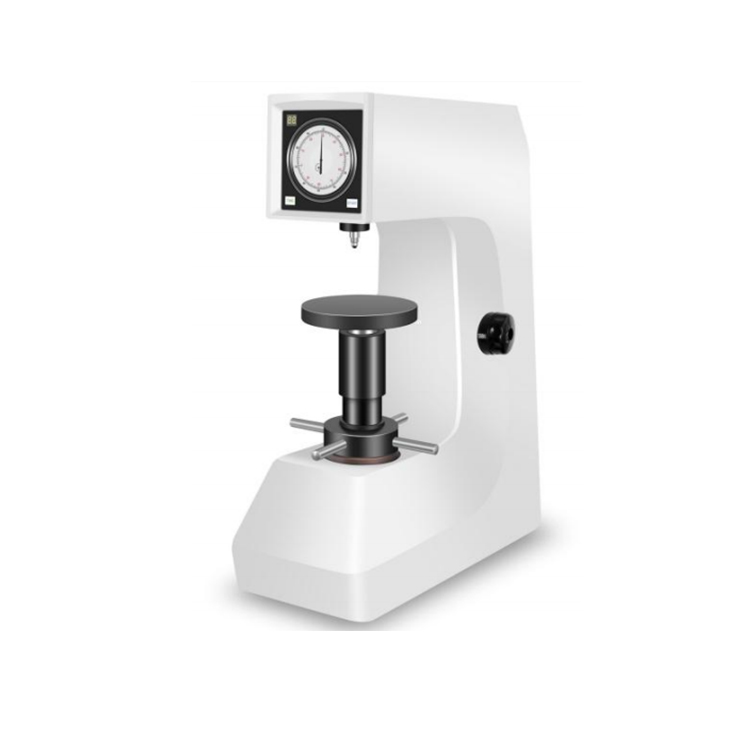

HTPR-150D Electric Plastic Rockwell Hardness Tester
Application:
Plastic Rockwell Hardness Tester is a specialized test non-metallic, plastic, hard rubber, synthetic resin, friction material and soft metal hardness tester.
Specifications:
| Model | HTPR-150D |
| Function | Electric |
| Indication of hardness value | Dail display |
| Total test force |
588.4N, 980.7N, 1471N (60, 100, 150kgf)
|
| Measuring range |
70-100HRE, 50-115HRL,50-115HRM, 50-115HRR.
|
| Max. test height | 200mm |
| The distance between pressure head center and the wall130mm | 130mm |
| Hardness resolution | 0.5HR |
| Dimention |
510*230*730mm |
| Weight | 75kg |
| Power supply |
AC 220V, 50Hz
|
