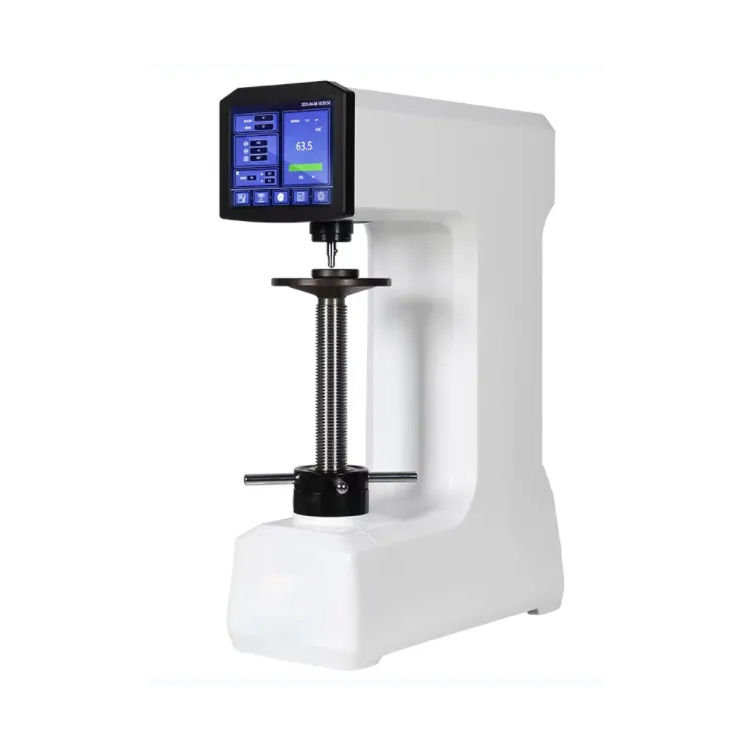

HTR-150T Touch Screen Rockwell Hardness Tester
Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals,
Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide
materials, powder metallurgy materials, hardness and thermal spray coating.
Specifications:
Model:HTR-150T
Function: Electric
Indication of hardness value: Touch screen
Data output: Built-in printer, RS232
Preliminary test force: 98 N.07N
Total test force: 588.4N, 980.7N, 1471N (60, 100, 150kgf)
Test range: (20-88)HRA; (20-100)HRB; (20-70)HRC.
Ball indenter: 1.588mm
Max. test height: 210mm
The distance between pressure head center and the wall: 165mm
Hardness resolution: 0.1HR
Dimention: 220*510*694mm
Weight: 90kgPower supply: AC 220V, 50Hz
