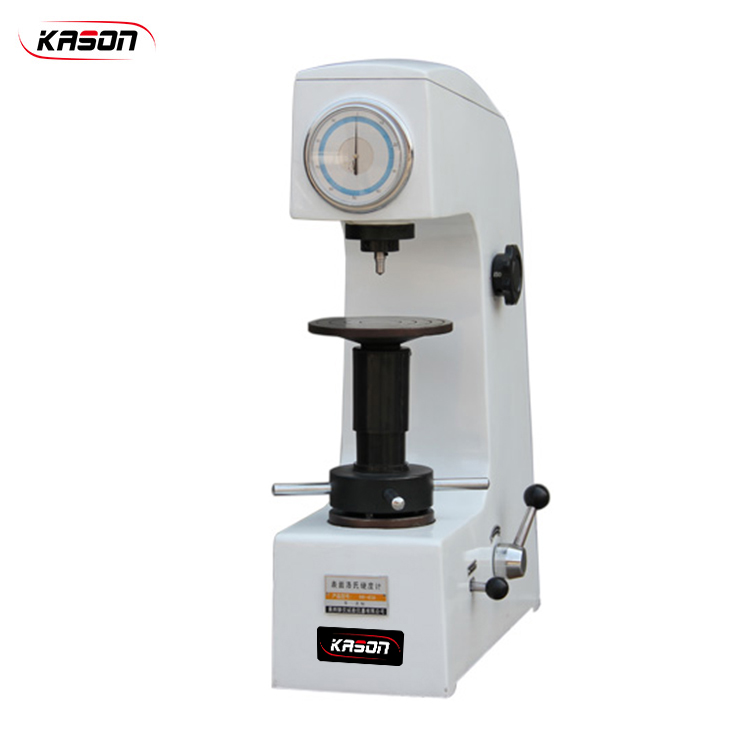

HSTR-45 Manual Superficial Rockwell Hardness Tester
Application:
Superficial Rockwell Hardness Tester suitable for measuring superficial rockwell hardness of Ferrous Metals,
Alloy Steel, Carbide and Metal after treated surface (carburizing, nitriding, plating layer). Especially suitable for
precision measurement of Parallel Planes.
Specifications:
Model:HSTR-45
Function: Manual
Indication of hardness value: Dial display
Total test force: 15Kgf(147.10N), 30Kgf(294.20N), 45Kgf(441.30N)
Measuring range: 70-94HR15N, 67-93HR15T, 42-86HR30N, 29-82HR30T, 20-77HR45N, 10-72HR45T
Max. test height: 170mm
The distance between pressure head center and the wall: 135mm
Hardness resolution: 0.5HR
Dimention: 466*238*630mm
Weight: 65kg
