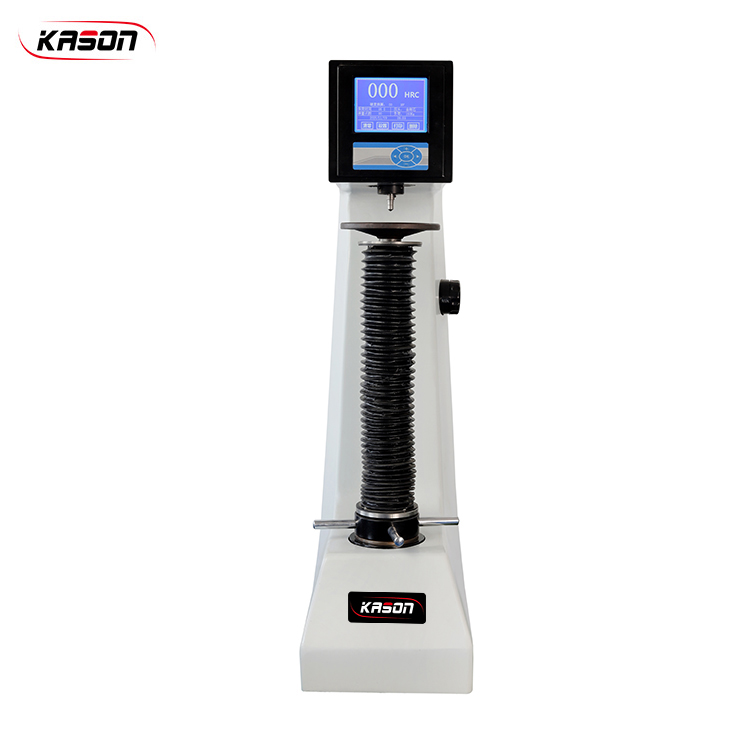

HTR-150BS Digital display High Stroke Rockwell Hardness Tester
Application :
Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.
Wide range of applications, suitable for rockwell hardness testing of hardening, quenching and other
heat-treated material.
Specifications:
Model: HTR-150BS
Function: Electric
Indication of hardness value: Digital display
Data output: Built-in printer, RS232
Preliminary test force: 98 N.07N
Total test force: 588.4N, 980.7N, 1471N (60, 100, 150kgf)
Test range: (20-88)HRA; (20-100)HRB; (20-70)HRC.
Ball indenter: 1.588mm
Max. test height:400mm
The distance between pressure head center and the wall: 165mm
Hardness resolution: 0.1HR
Dimention: 250*510*905mm
Weight: 135kg
Power supply: AC 220V, 50Hz
