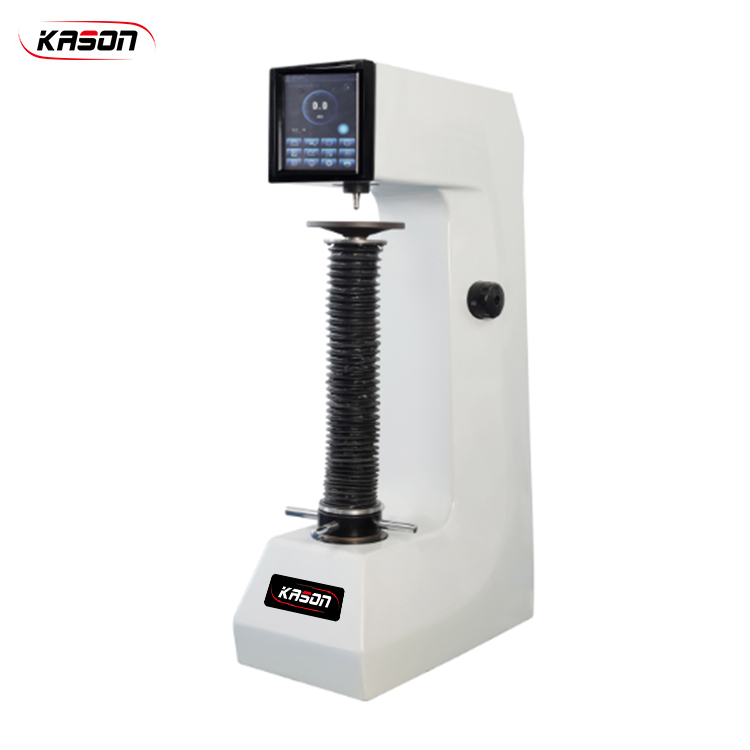

HTR-150BT High Stroke Rockwell Hardness Tester
Application :
Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.
Wide range of applications, suitable for rockwell hardness testing of hardening, quenching and other heat-treated material.
Specifications:
Model: HTR-150BT
Indication Of Hardness Value: Touch Screen
Data output: Built-in printer, RS232
Preliminary Test Force: 98 N.07N
Total Test Force: 588.4N, 980.7N, 1471N (60, 100, 150kgf)
Test Range: (20-88)HRA; (20-100)HRB; (20-70)HRC.
Ball indenter: ∮1.588mm
Max. Test Height: 400mm
The Distance Between Pressure Head Center And The Wall: 165mm
Hardness Resolution: 0.1HR
Dimensions(mm):250*510*905
Weight:135kg
