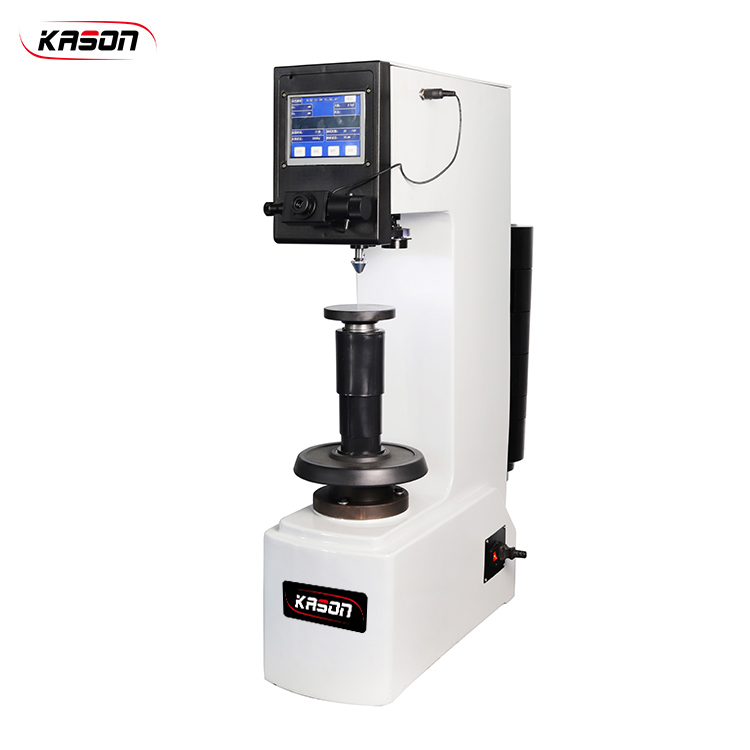

HTB-3000ST Digital Brinell Hardness Tester With Weight
Application:
Can be used to determine un-quenched steel.,Cast iron.,Non-ferrous metal and the soft texture of bearing
metal materials ' brinell hardness value.
Specifications:
Model: HTB-3000ST
Testing Range: 8-450HBS, 8-650HBW
Testing Force: 1.839、2.452、7.355、9.807、29.42KN（187.5、250、750、 1000、3000KGF）
Load mode: Weight
Max. Height of sample: 280mm
Indentation measurement method: Direct reading
Dwell time: 6 - 99S
Distance Between Pressing Head Center And The Wall: 150mm
Data Output: Built-in printer
Tungsten carbbide ball penetrator: Dia. 2.5, 5, 10
