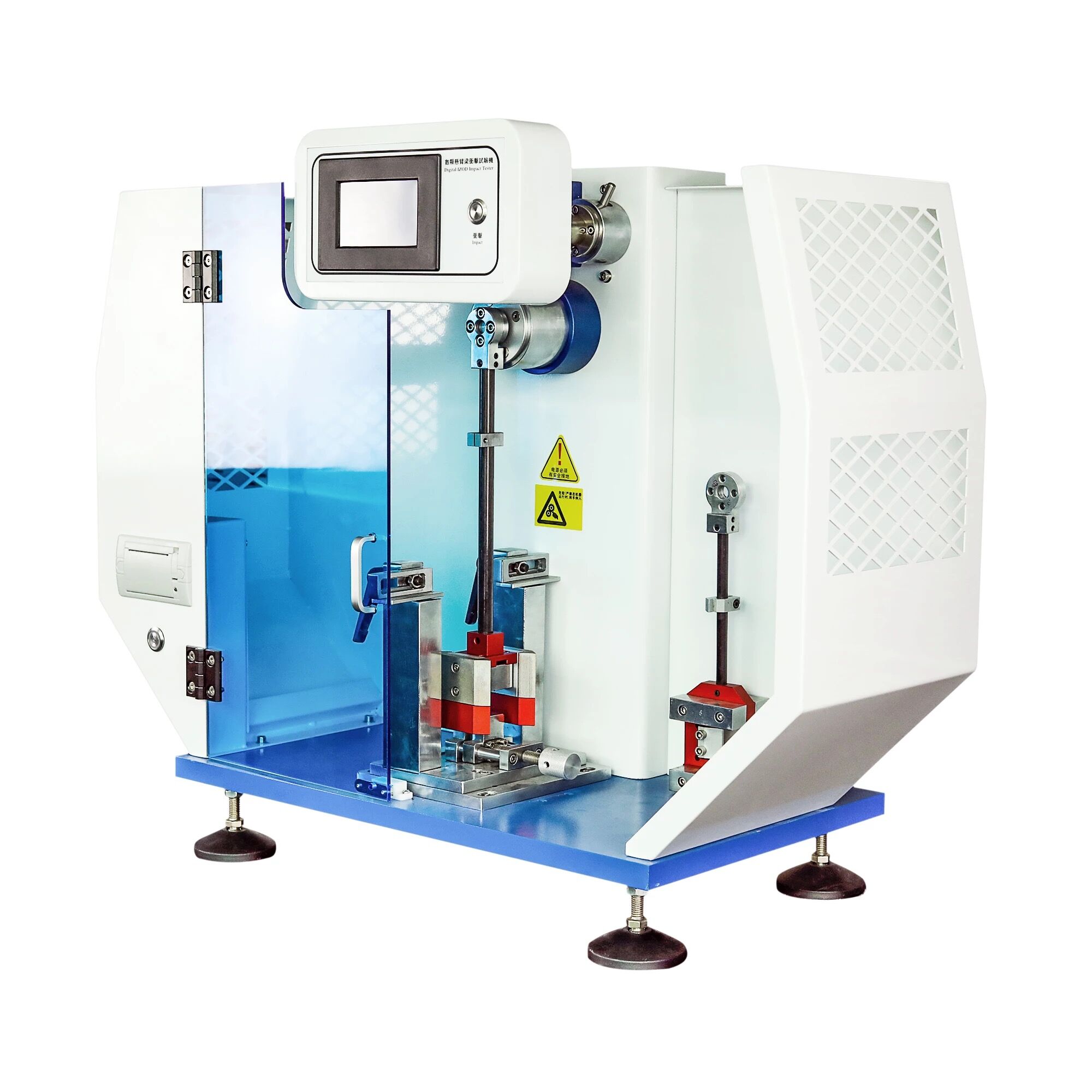

ASTM 1j/2.75j/4j/5.5j/7.5j/11j/22j digital izod pendulum charpy impact testing equipment price
1. Applications:
XJXD-5T series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.
Standard& features:
The main technical parameters of this series of impact testing machines fully meet the requirements of ASTMD256,IS0180, GB/T1043, JB/T 8762,GB/T 18743,GB/T 3808, JJG145,GB/T 1843,GB/T 2611 and JB/T 8761 standards.
It is a simple structure, convenient operation, accurate and reliable data.
The machine adopts the original Taiwan Delta touch screen display, PLC control, equipped with a micro printer, and an exquisite appearance impact testing machine. With USB connect to the computer directly.
Technical Parameter:
|
Charpy |
Izod |
||
|
Pendulum Energy |
2J、4J、5J |
Pendulum Energy |
2.75J、5.5J |
|
Impact Speed |
2.9m/s |
Impact Speed |
3.5m/s |
|
Rising Angle Of Pendulum |
150° |
Rising Angle Of Pendulum |
150° |
|
Pendulum Center To Sample Center Distance |
230mm |
Pendulum Center To Sample Center Distance |
335mm |
|
Impact Cutting Edge Radius |
（2±0.5）mm |
Impact Cutting Edge Radius |
R=0.8mm±0.2mm |
|
Power supply |
100VA 220VAC 50HZ |
||
|
Dimensions |
420mm*250mm*650mm |
||
|
Required space |
0.4m front and rear, 1.5m left and right, 1.5m upper part |
||
