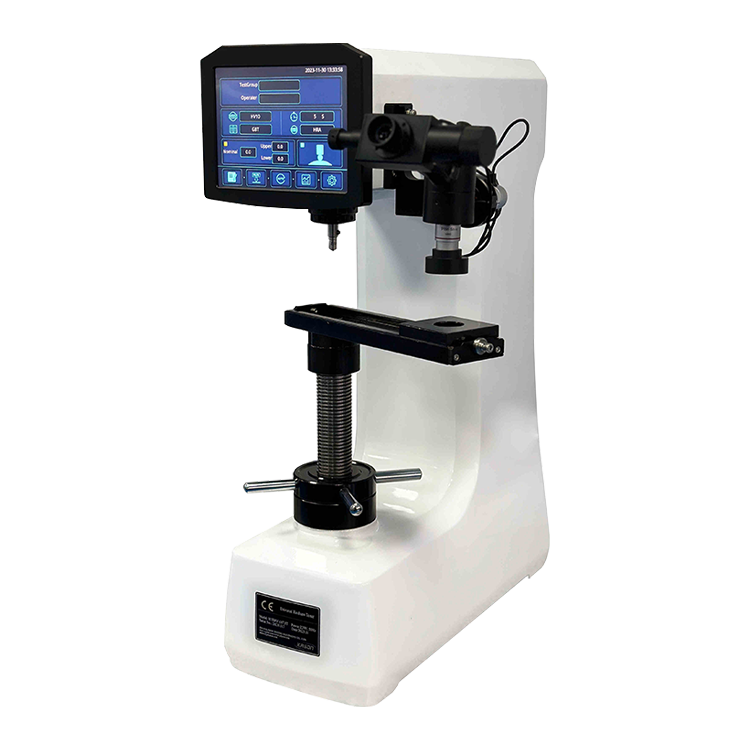

HTBRV-250TE Touch screen display Universal Hardness Tester
Features:
Model HTBRV-250TE is used electronic loading control instead of weight loading control, it is equippedwithanewly-designed large displaying screen with good reliability, excellent operation and easy watching, thusit isahigh-tech product combining the optic, mechanic and electric features.It has Brinell, Rockwell and Vickers three test modes and many levels of test force, which can test several kindsof hardness.
Technical Parameters:
|
Model |
HTBRV-250TE |
|
Rockwell Test Force |
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
|
Brinell Test Force |
30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf(980.7N), 187.5kgf (1839N) |
|
Vickers Test Force |
30kgf (294.2N), 100kgf (980.7N) |
|
Indenter |
Diamond Rockwell Indenter, Diamond Vickers Indenter, ф1.588mm, ф2.5mm, ф5mmBall Indenter |
|
Loading Method |
Automatic (Loading/Dwell/Unloading) |
|
Hardness Reading |
Touch Screen Display |
|
Test Scale |
HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100 |
|
Conversion Scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
|
Magnification |
Brinell: 37.5×, Vickers: 75× |
|
Resolution |
Rockwell: 0.1HR, Brinell: 0.1HB, Vickers: 0.1HV |
|
Dwell Time |
0~60s |
|
Data Output |
Built-in Printer |
|
Max. Height of Specimen |
Rockwell: 230mm, Brinell &Vickers: 160mm |
|
Throat |
170mm |
|
Power Supply |
AC220V ，50Hz |
|
Execute Standard |
ISO 6508，ASTM E-18 ，JIS Z2245 ，GB/T 230.2ISO 6506，ASTM E10-12 ，JIS Z2243 ，GB/T 231.2ISO 6507，ASTM E92 ，JIS Z2244 ，GB/T 4340.2 |
|
Dimension |
475×200×700mm ，Packing Dimension: 620×420×890mm |
|
Weight |
Net Weight: 60kg ，Gross Weight: 84kg |
