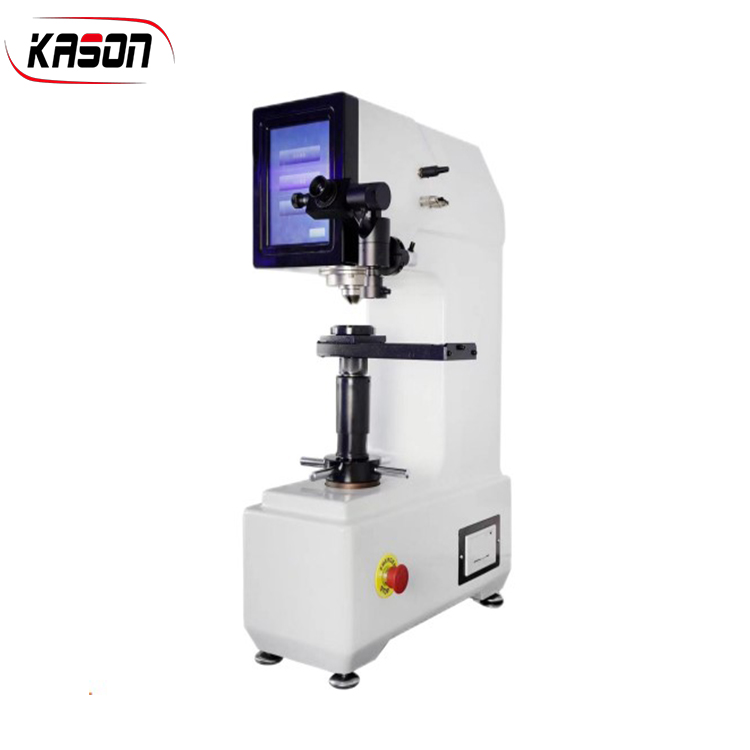

HTBRV-250T Brinel Rockwell vickers universal hardness tester
| Model | HTBRV-250T |
| Test force | 3 〜250kgf |
| Brinell scale | HBW1/5. HBW2.5/62.5、HBW1/10. HBW2.5/15.625. HBW1/30. HBW2.5/31.25、HBW2.5/62.5、HBW10/100> HBW5/125, HBW2.5/187.5、HBW5/250、HBW 10/250(select 10 scales) |
| Hardness resolution | 0.1HBW |
| Rockwell scale | HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRP、HRR、HRS、HRV |
| Superficial Rockwell scale | 15N、15T、15W、15X、15丫、30N、30T、30W、30X、30Y、45N、 45T、45W、45X、45Y |
| Hardness resolution | 0.1HR |
| Vickers scale | HV3、HV5、HV10、HV20、HV30、HV40、HV50、HV60、HV80、 HV100、HV120 (select 10 scales) |
| Hardness resolution | 0.1 HV |
| Objective | 2.5X, 5X (10X. 20X optional) |
| Magnification of microscope | Brinell： 37.5X、Vickers： 75X |
| Hardness measurement | Brinell： 8〜650HBW Rockwell： 20〜100HR Vickers： 8〜 2900HV |
| Data output | LCD display. U disk |
| Max height of specimen | Rockwell： 350mm、Brinell Vickers： 280mm |
| Head - wall distance | 200mm |
| Power | AC220V+5%. 50-60HZ |
